| Coil Weight | 10000 pounds |
| Coil OD | 72 inches |
-Downlayer:
90 Degree Discharge

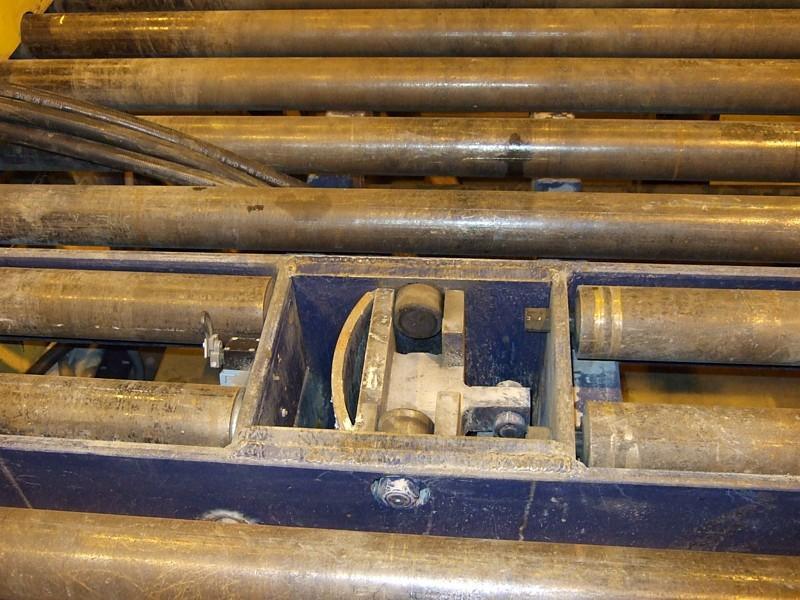

3.5" Dia. x 78.5" Face Driven Rolls
1" Hex Shafts on 7" Centers

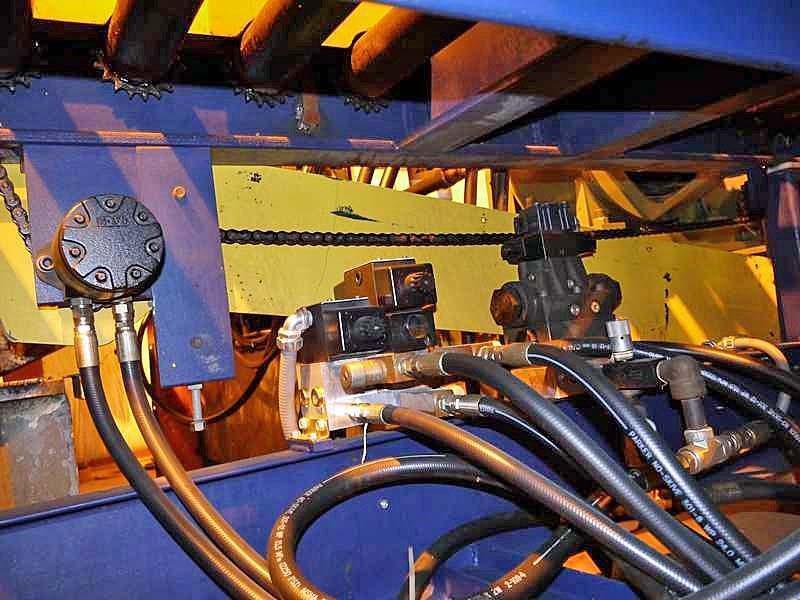

Hydraulic Motor Driven
Approx. 29" Long Horn
Hyd. Cylinder actuated
Approx. 67.5" from floor to top of horn in raised position.
(2) 4" Bore hydraulic cylinders for tipping
(Cylinders are missing, but can be supplied)
36" Pass Line Height
Parker Hyd. Valves
Note: Requires a small pit under the Horn Enclosure
Approx. 16" L x 16" W x 8" DeepOverall Size: 92" L-R x 97" F-B
