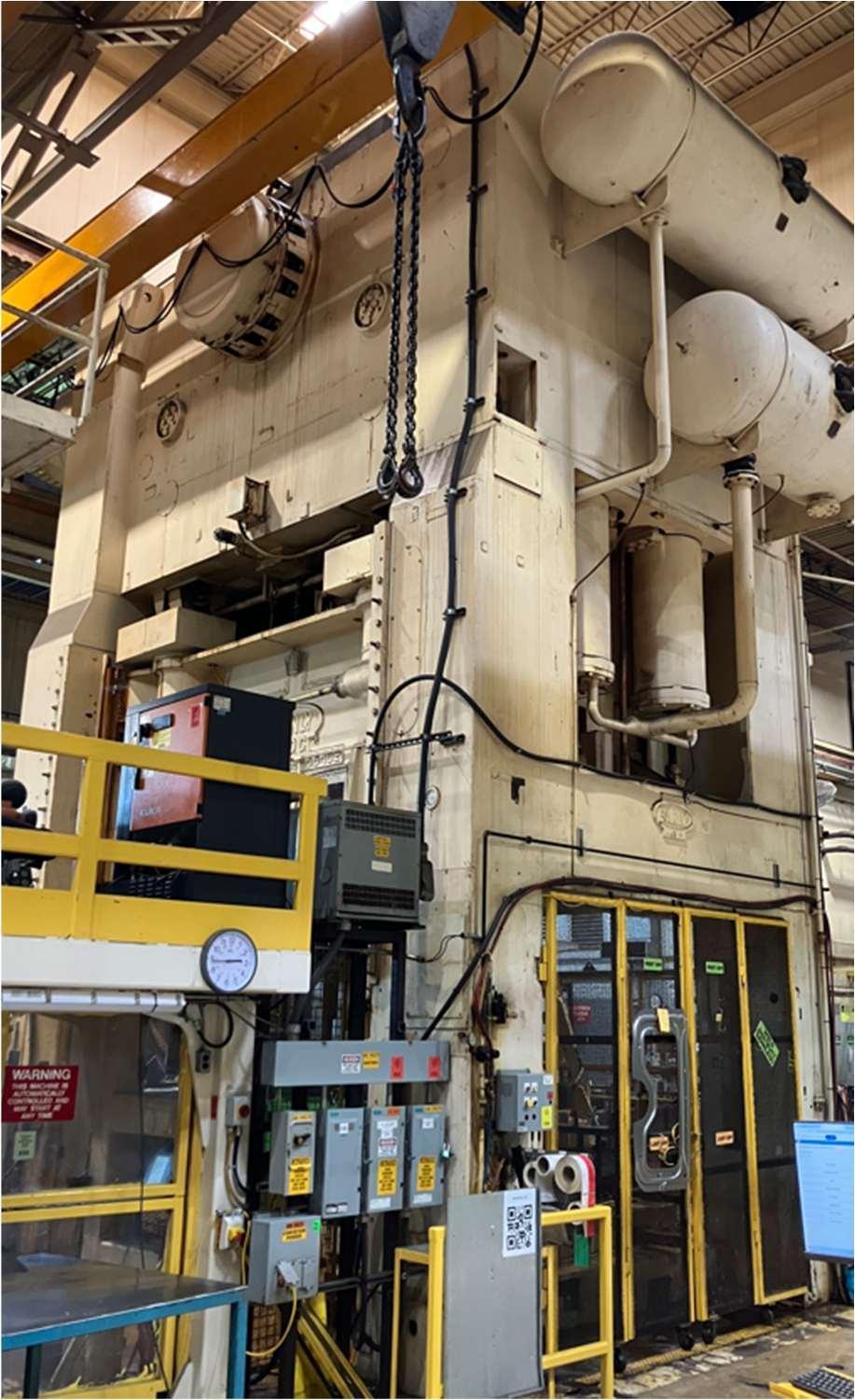

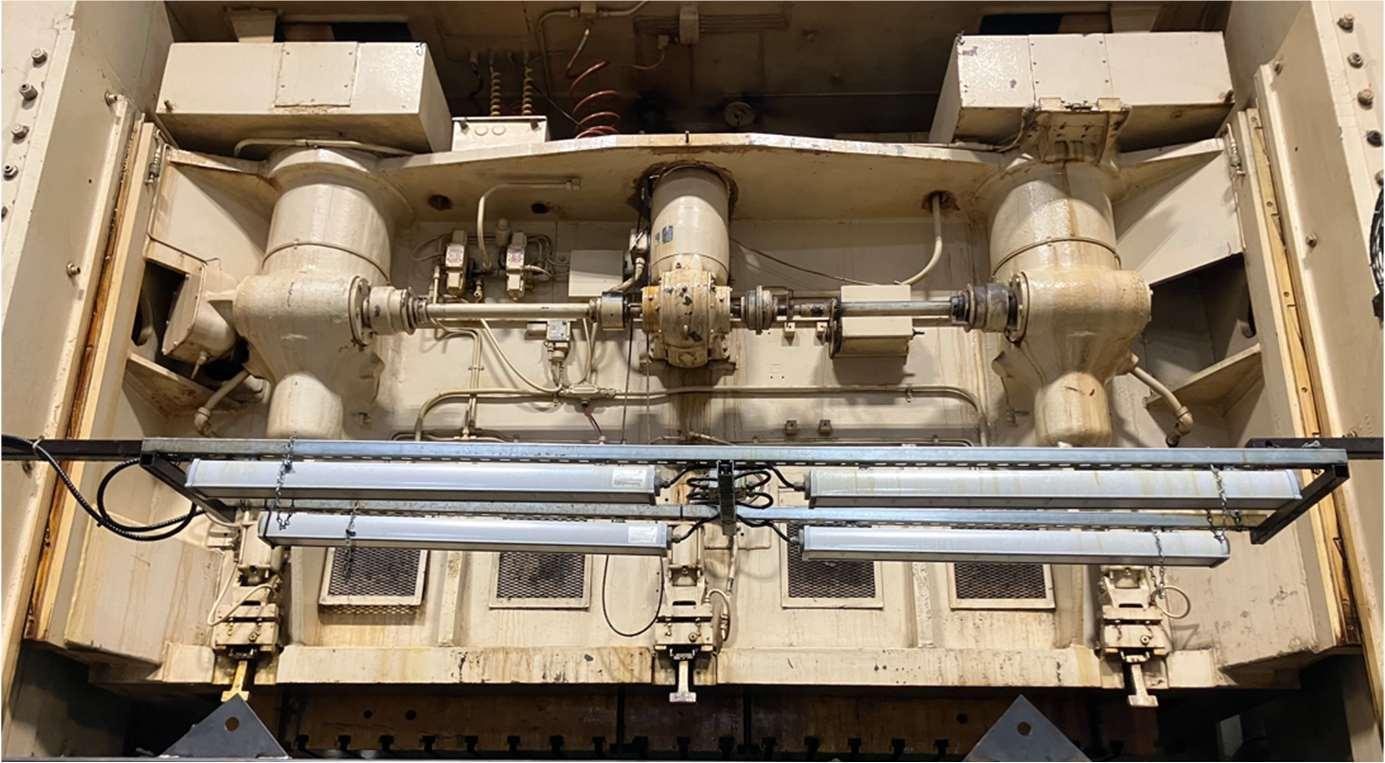

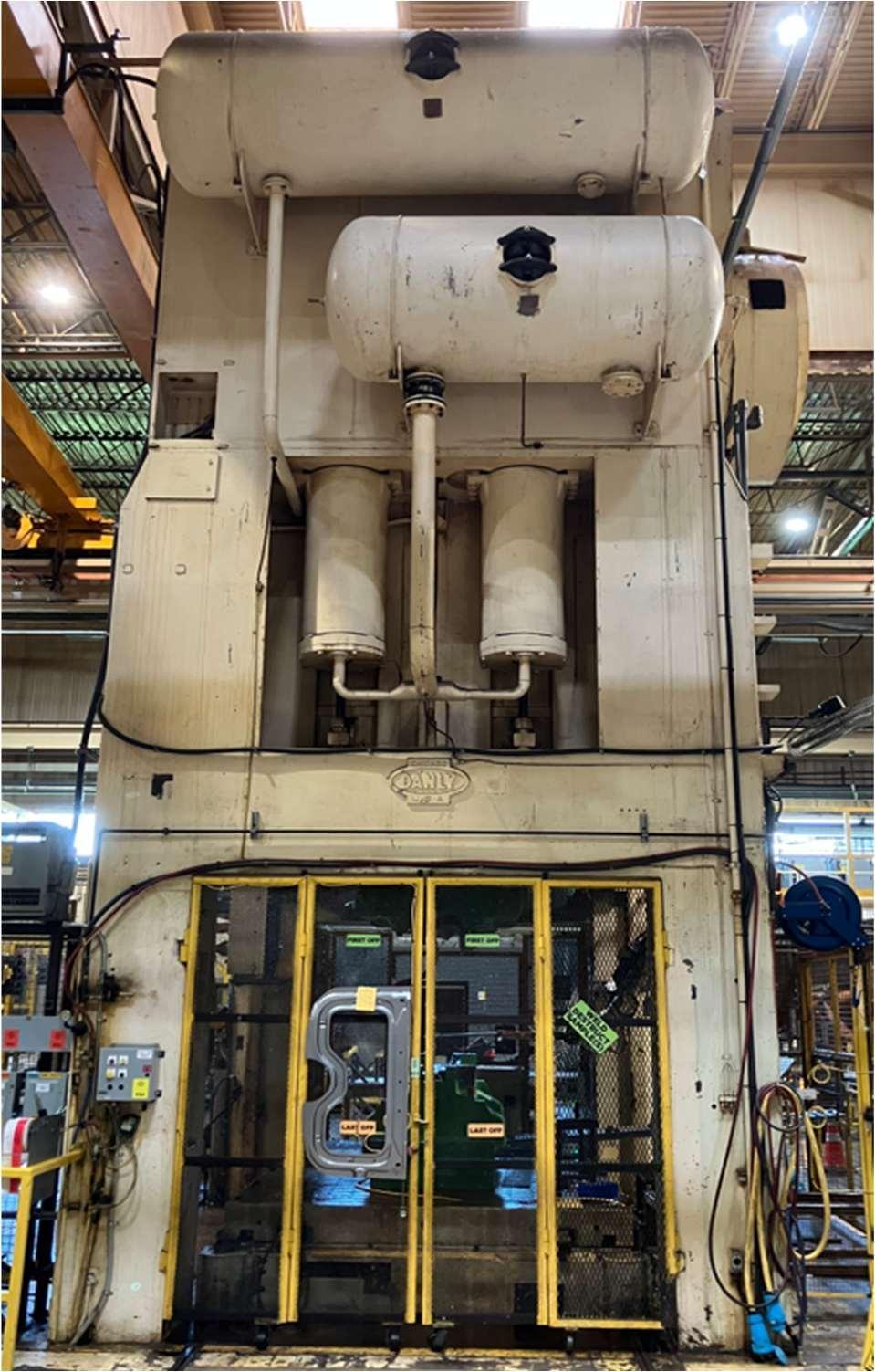

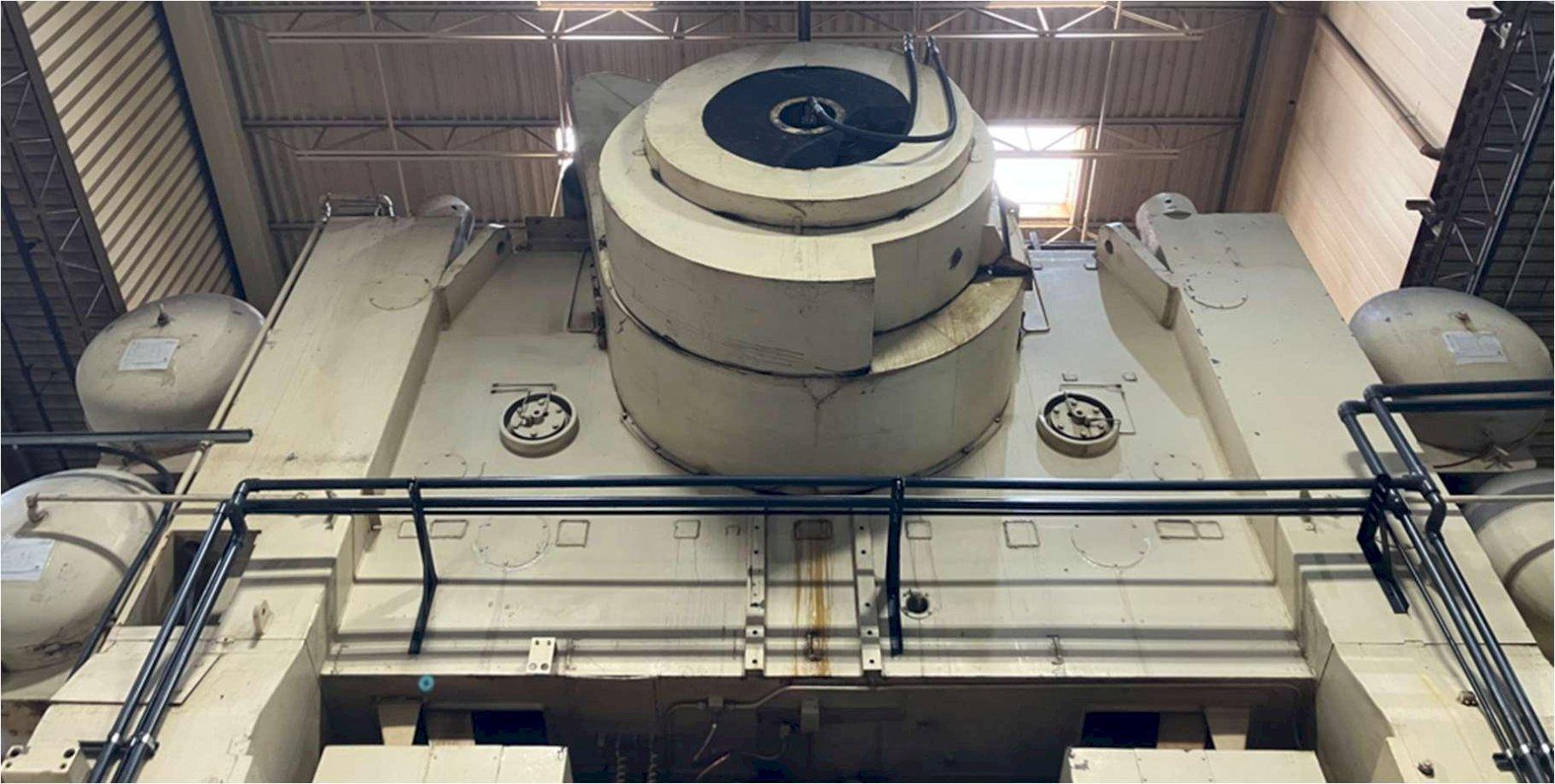

Model: D4-800-500-156-102
Built Year: 1963
Capacity / Tonnage: 800T @ 1/2 in ABDC Inner / 500T @ 1/4 in ABDC Outer
Slide Area (L-R x F-B): 138” x 84” (3505 x 2133 mm) Inner / 156” x 102” (3962 x 2590 mm) Outer
Bed Area (L-R x F-B): 156” x 102” (3962 x 2591 mm)
Stroke: 44” (1117 mm) Inner / 33” (838 mm) Outer
Slide Adjustment: 12” (305 mm) Inner and Outer
Shut Height over Bed (SDAU): 108” (2743 mm) Inner / 100” (2540 mm) Outer
Slide T-Slots: 72” (1828 mm)
Strokes per minute: 7 and 14 SPM
Capacity of Main Motor: 125 HP 1200 RPM
Number of Cushions: 0
Height above floor: 33.10 ft (10084 mm)
Bolster Area (L-R x F-B): 156” x 102” (3962 x 2591 mm)
Number and Type of Bolsters:
(1) Uni-Directional Rolling Bolster
Through the window
15” thickness / height
Top plate: 6” distant T-slotted (1” slots)
Approx weight: (with 1 slide and 1 rolling bolster) 295,000 kg
Equipped with:
Standard Press controls
Standard Press safety stop-buttons

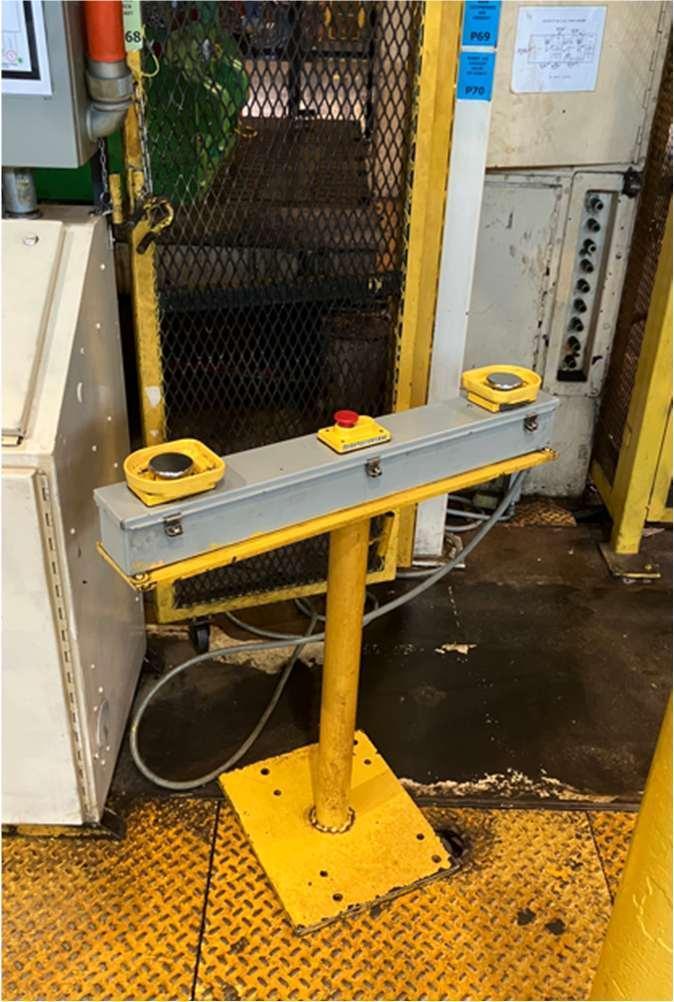

(1) Palm-button stand
Automation control at the operator’s panel
Semi-automatic counterbalance control at the operator’s panel programmable by recipe
Lubrication control at the operator’s panel
Tonnage monitor
Die Lights
