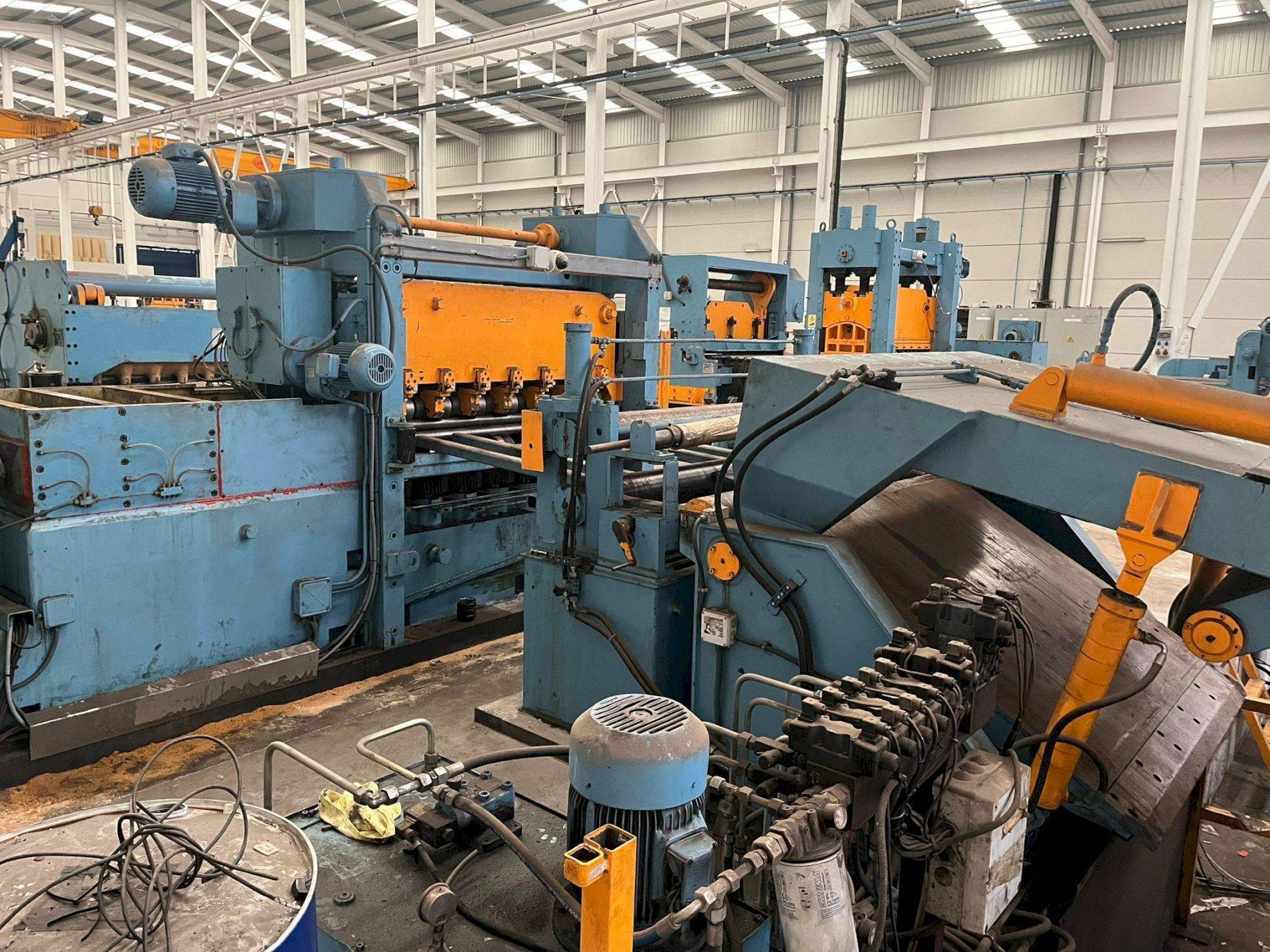

1500mm x 4.5 mm x 25 Ton Athader Cut To Length Line (2001)
1500mm x 4.5 mm x 25 Ton Athader Cut To Length Line (2001)
  • 1500mm x 4.5 mm x 25 Ton Athader Cut To Length Line (2001)
  • 1500mm x 4.5 mm x 25 Ton Athader Cut To Length Line (2001)

1500mm x 4.5 mm x 25 Ton Athader Cut To Length Line (2001)

Brand
ATHADER

Model
Not Specified

Type
Cut To Length Lines

Stock #
605569A

Condition
Used

Year

Request a Quote
Have one to sell?
Coil Weight 55000 pounds
Width 59 inches
Thickness .177 inches

Equipped With

Manufacturer: Athader (Spain)
Line Direction: Left to Right

General Specifications:
Max width: 1500 mm
Max thickness: 4.5 mm
Max Yield: 2,800Kg/Cm2
Max Resistance: 4,500Kg/Cm2
Max Coil Weight: 25 Ton
Max Sheet Length: 6000mm

Complete Line with the Following Components:

Pit Type Coil Car

Double Expandable Mandrel  Uncoiler

Powered Hold Down Roll with Peeler Table

Entry Pinch Rolls

17 Roll 4-HI Precision Leveler
Motorized Top and Bottom  Back Ups

Exit Pinch Rolls


Flying Shear
120 Cuts Per Minute
20KW Motor

Run Out Table


Exit Conveyor with Stacking Table

Videos of Line in Operation Available Upon Request
