General Specifications:
Max Width: 1500mm
Thickness Range: 0.4mm - 2.9mm
Max Length: 3800mm
Min Width: 70mm
Min Length: 150mm
Max Coil Weight: 8 tonne
Manufacturer: VULCMANN, Herr Voss Keystone, SHEARLINE
Featuring:

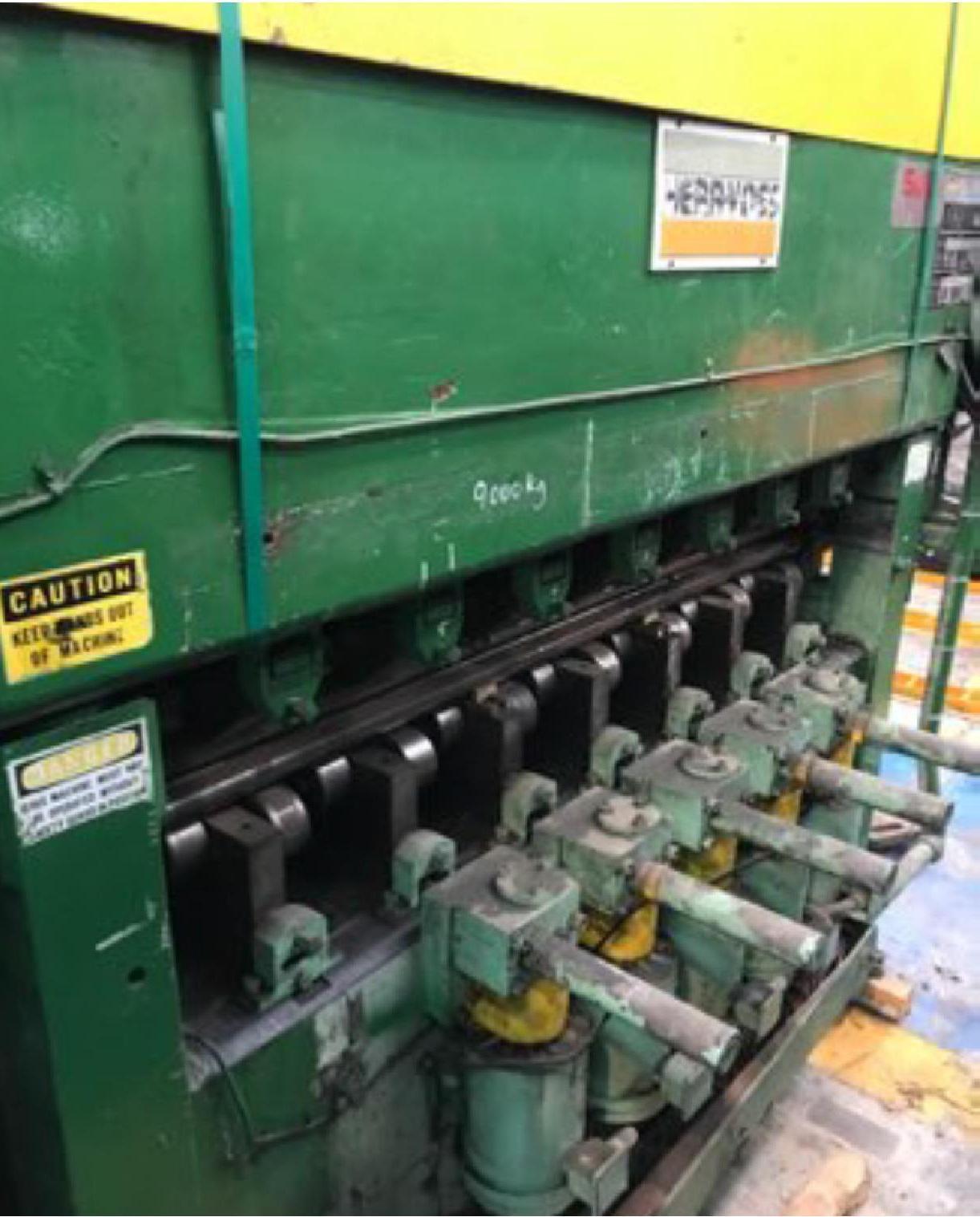

19 Roll 4-HI Herr Voss Precision Leveller
Model: RH 66/1.750-19/7 4HI 143
FPM 66"
Roll Face 1.750"
Roll Diameter 19 Work Rolls
7 Flights Top & Bottom BackUps
5 Flights Motorized with Individual Adjustments
2 Sets of Leveller Controls Digital Readouts
125 HP DC Drive
auto stacker with Bombay doors
paper winder and paper applicator
Included Components:
Paper Winder to Accumulate Interleaved Paper
Entry Coil Car
Uncoiler or Mandrel
Uncoiler Snubber and Peeler Table
Pinch Roller
Leveller and Built-in Control Panel
Pit Entry Rollers
Automated Pit Table
Pit Exit Rollers

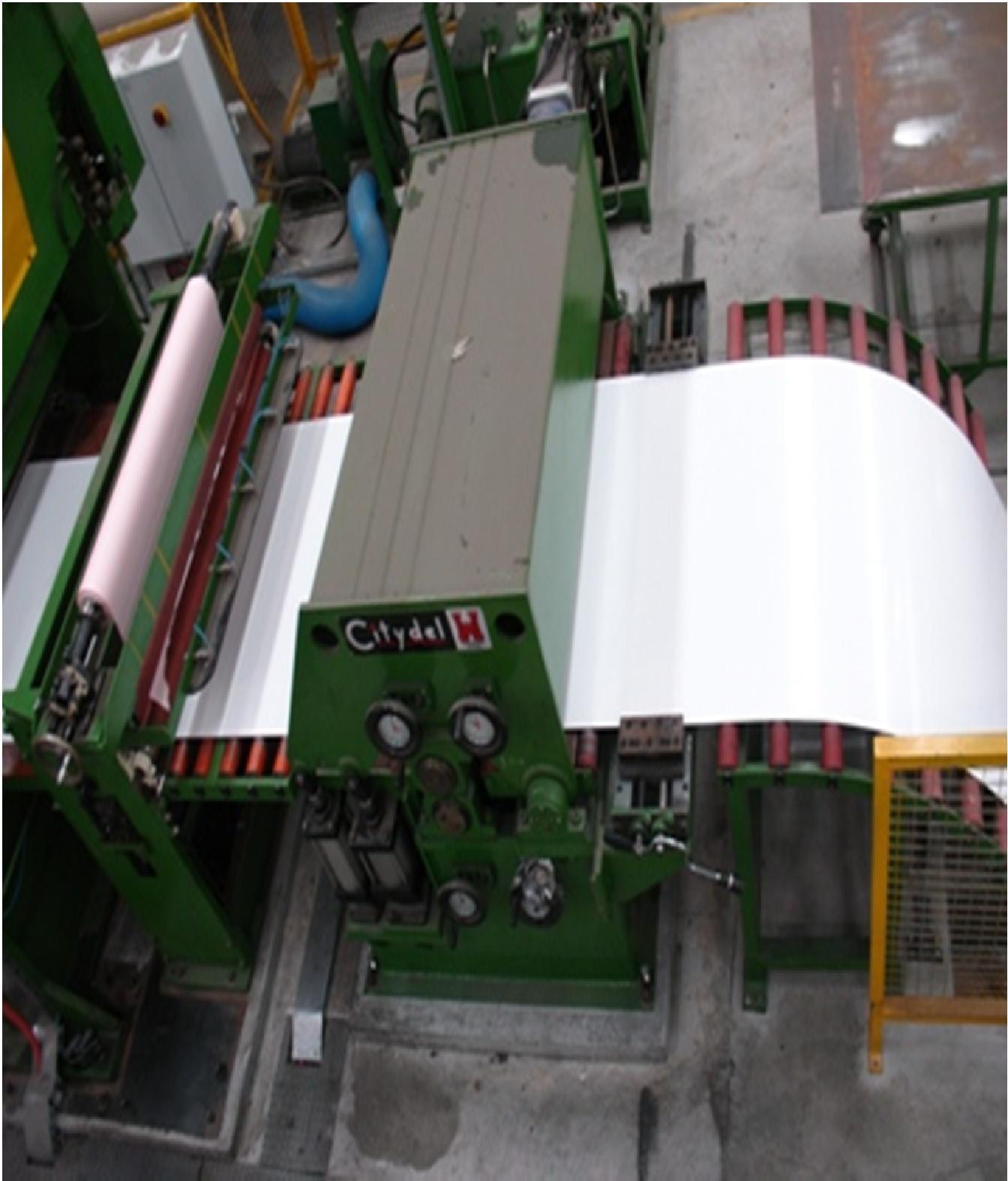

Pinch Rollers

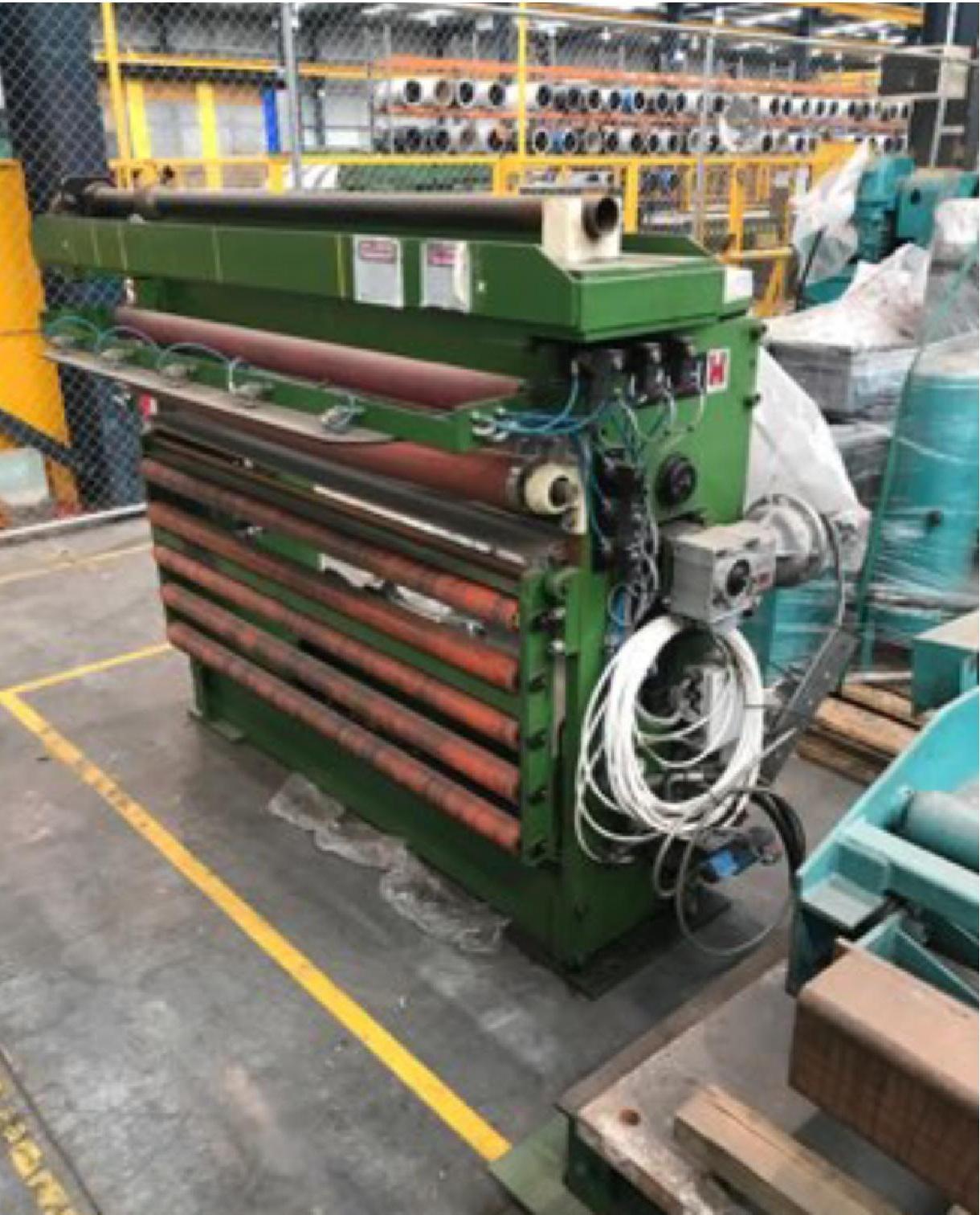

Paper and PVC Applicator
Roller to Shear Head
Measuring Head
Shear Head
Air Blower
Exit Table
Automatic Stacker Capability with Bombay Doors
Exit Roller Table
3 Control Stations with Touch Screen and PLC Control
