Year 1995
Diameter Range: 31mm - 165.2mm
Wall Thickness Range: 1.8mm - 5.5mm (Rounds)
2.8mm - 5.5mm (Squares & Rectangles)
Max Line Speed: 59 MPM
Max Coil Width: 523.3 mm
Rafted Base without second set of raft stands
Upgraded Gear Boxes
Tooling:
Round Tooling: 76.3 , 89.1, 101.6 , 114.3 , 139.8 , 165.2
Squares & Rectangles: 75 x 75, 100 x 100, 100 x 50 , 100 x 150 , 125 x 125, 4" x 3" ,4” x 4”, 5" x 3" , 6" x 2" , 6" x 3", 5” x 5”
Complete Mill Featuring:
Double End Uncoiler
7 Roll Straightener

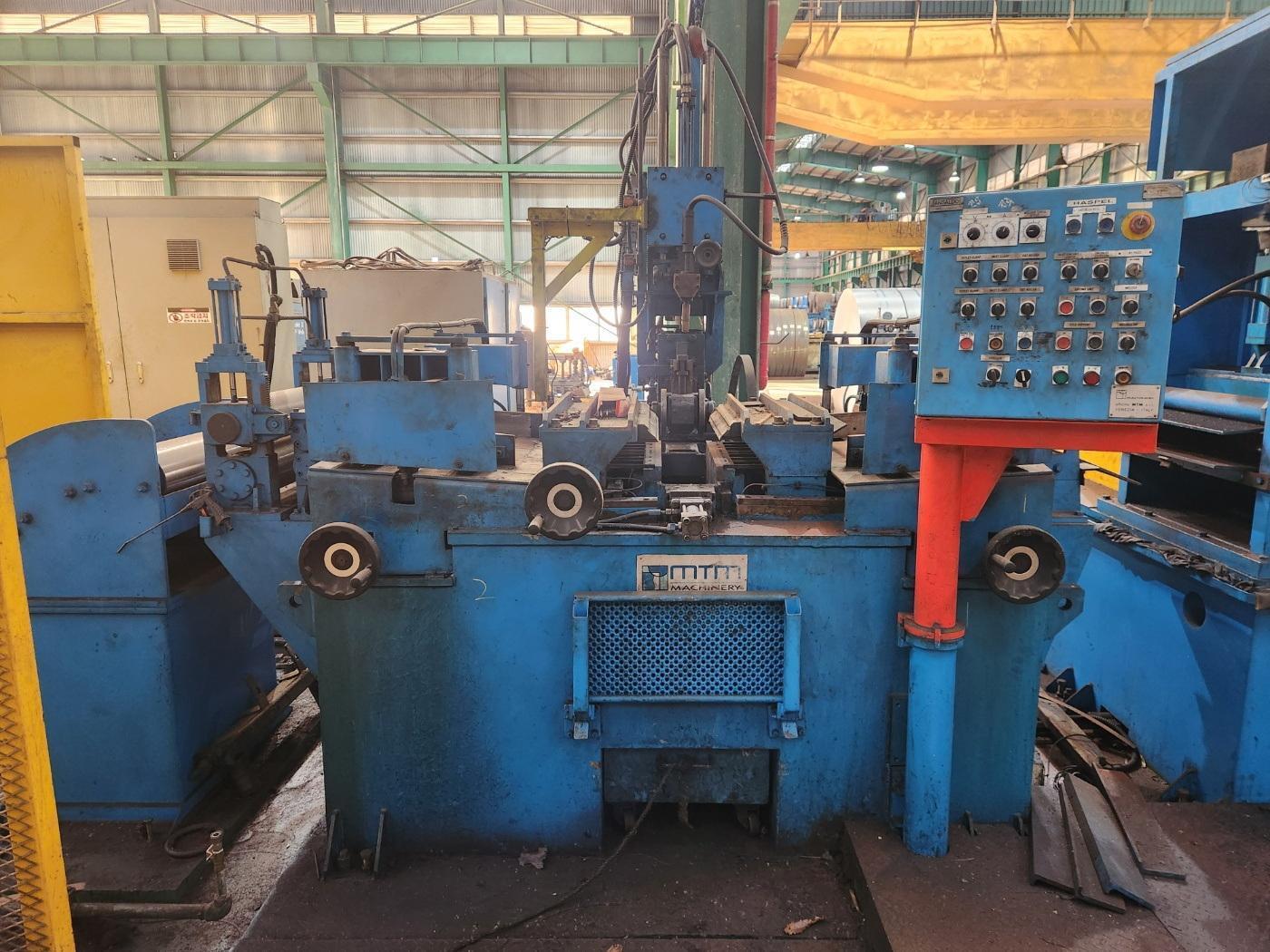

Semi Automatic Shear and End Welder
Horizontal Accumulator
Julius Edging Unit

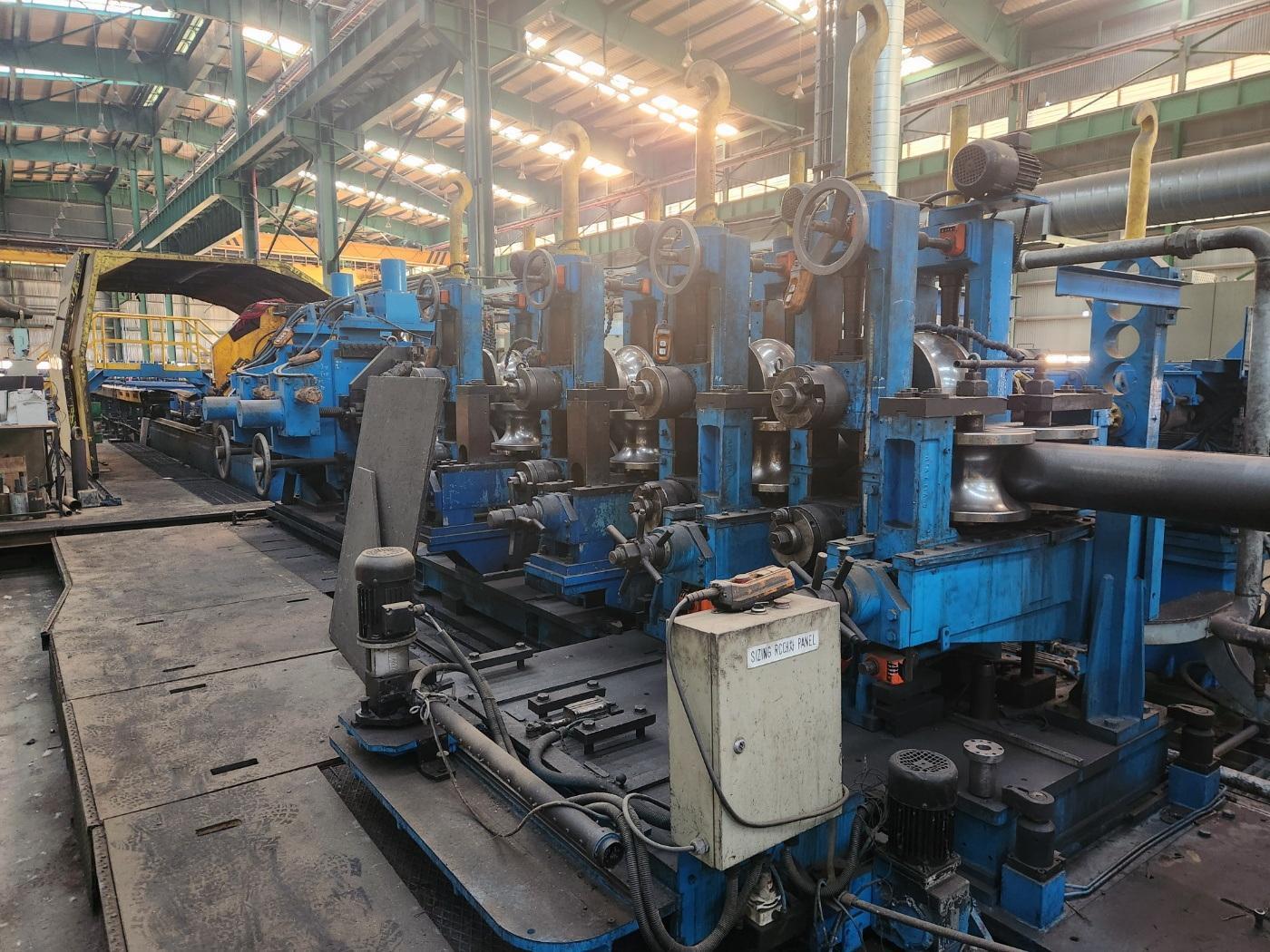

Forming Mill with (2) 148 KW DC Drives
110mm Dia Shafts
Rafted Bases

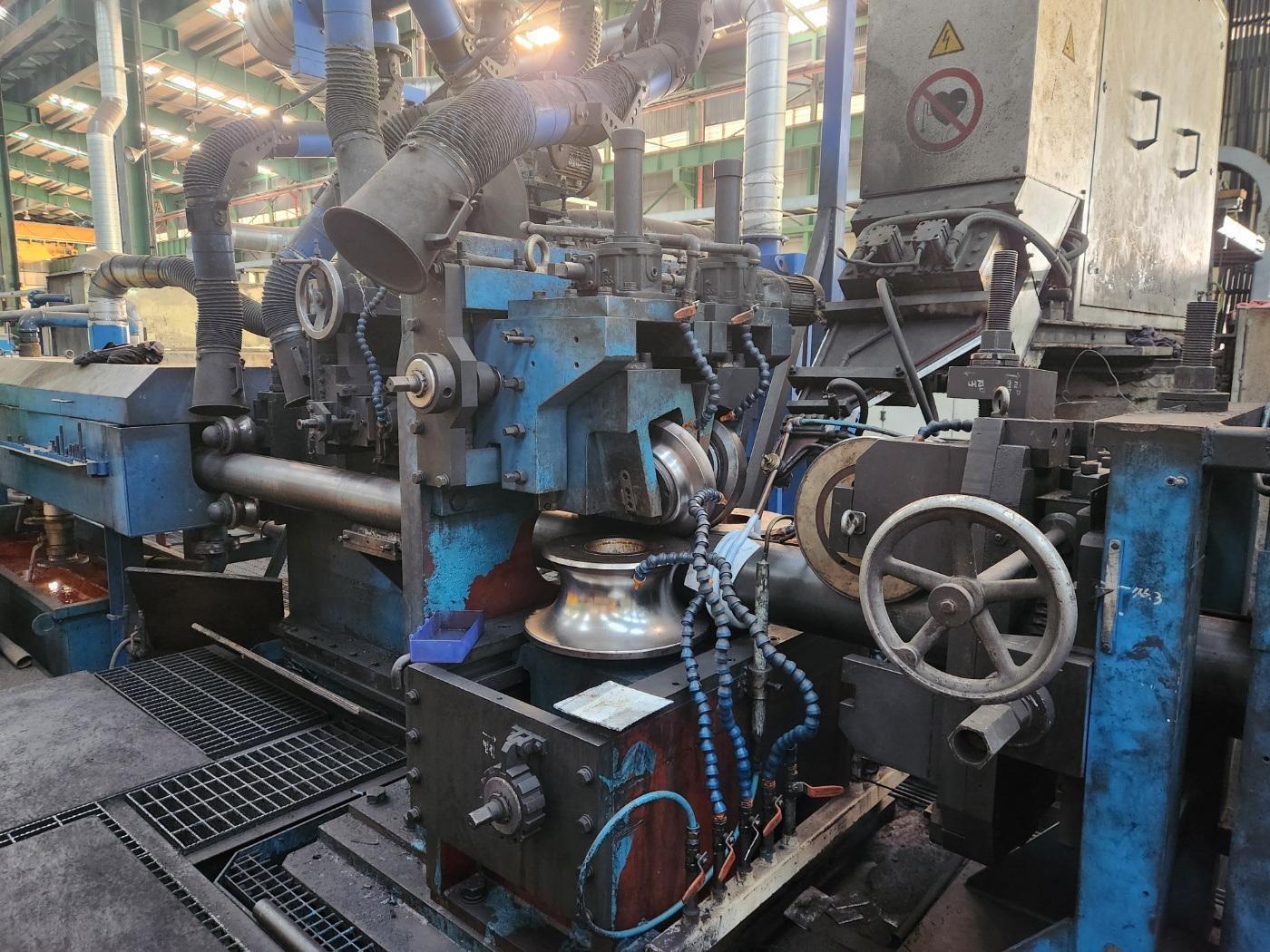

410KW SMS Elotherm Welder
ID / OD Scarfing

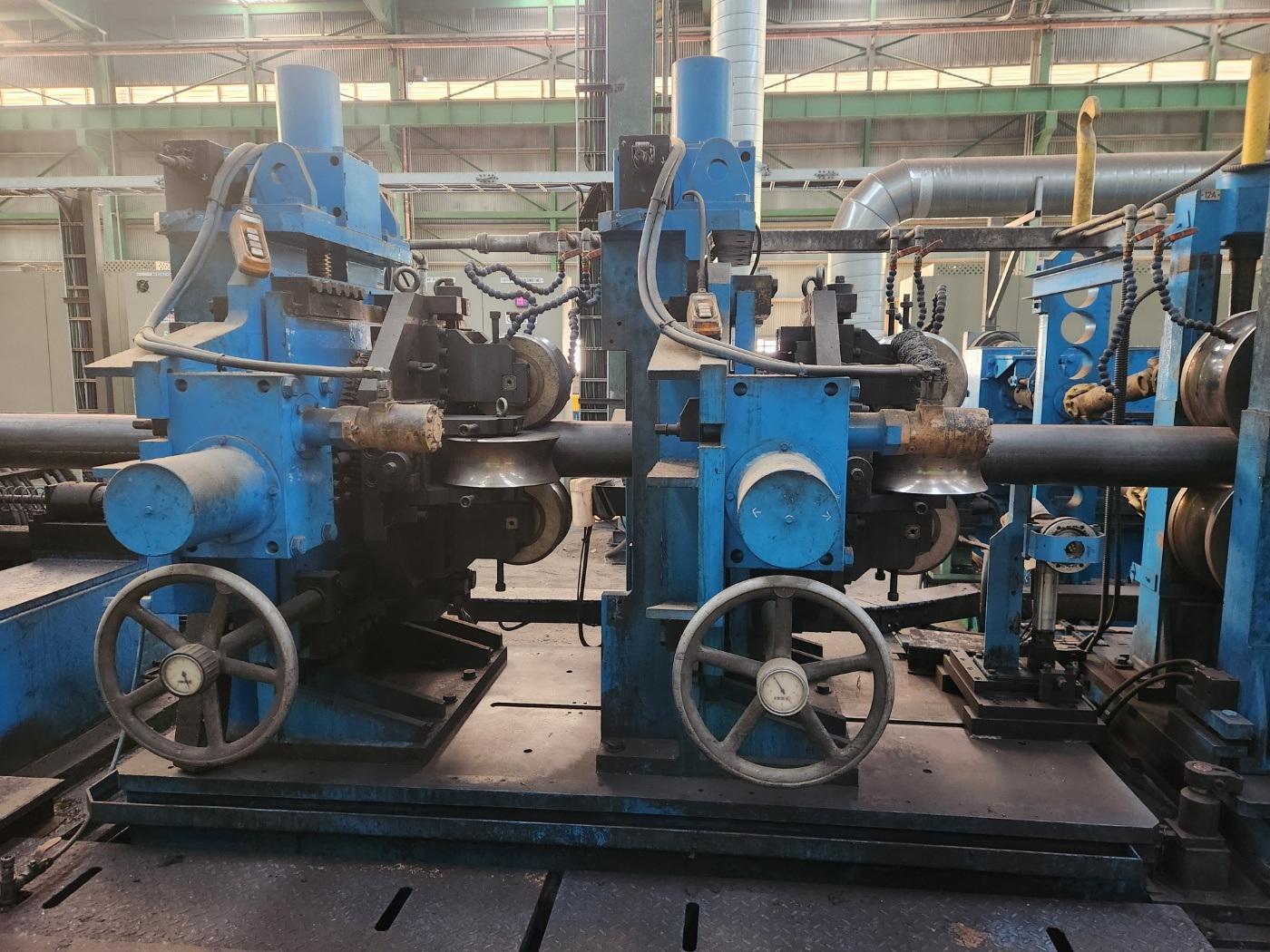

Sizing Miil with 148 KW Drive
2 Turks Heads
MTM Flying Saw

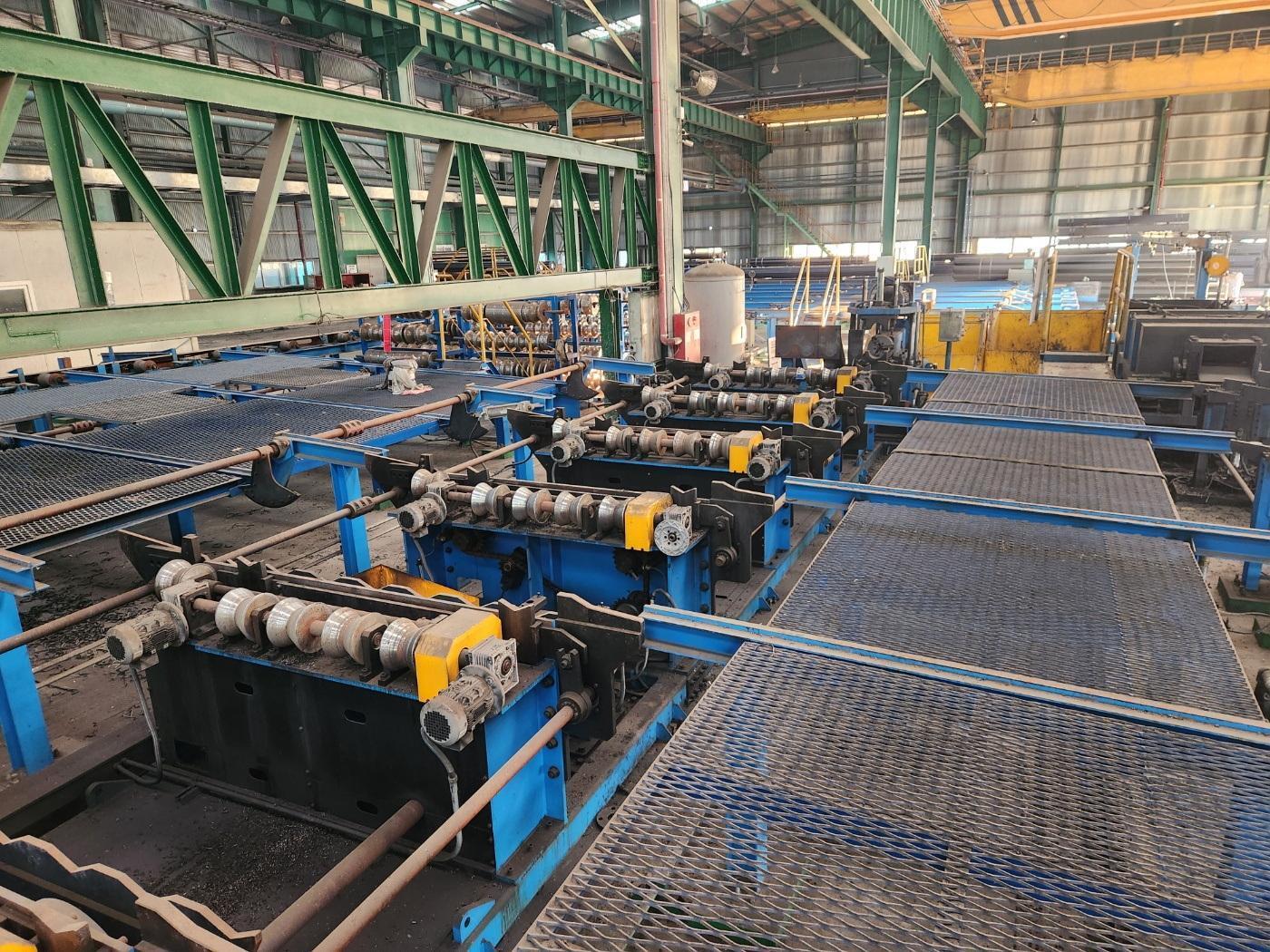

Run-Out Table
Tooling
Operator Flat Screen Panels
New in January 2022

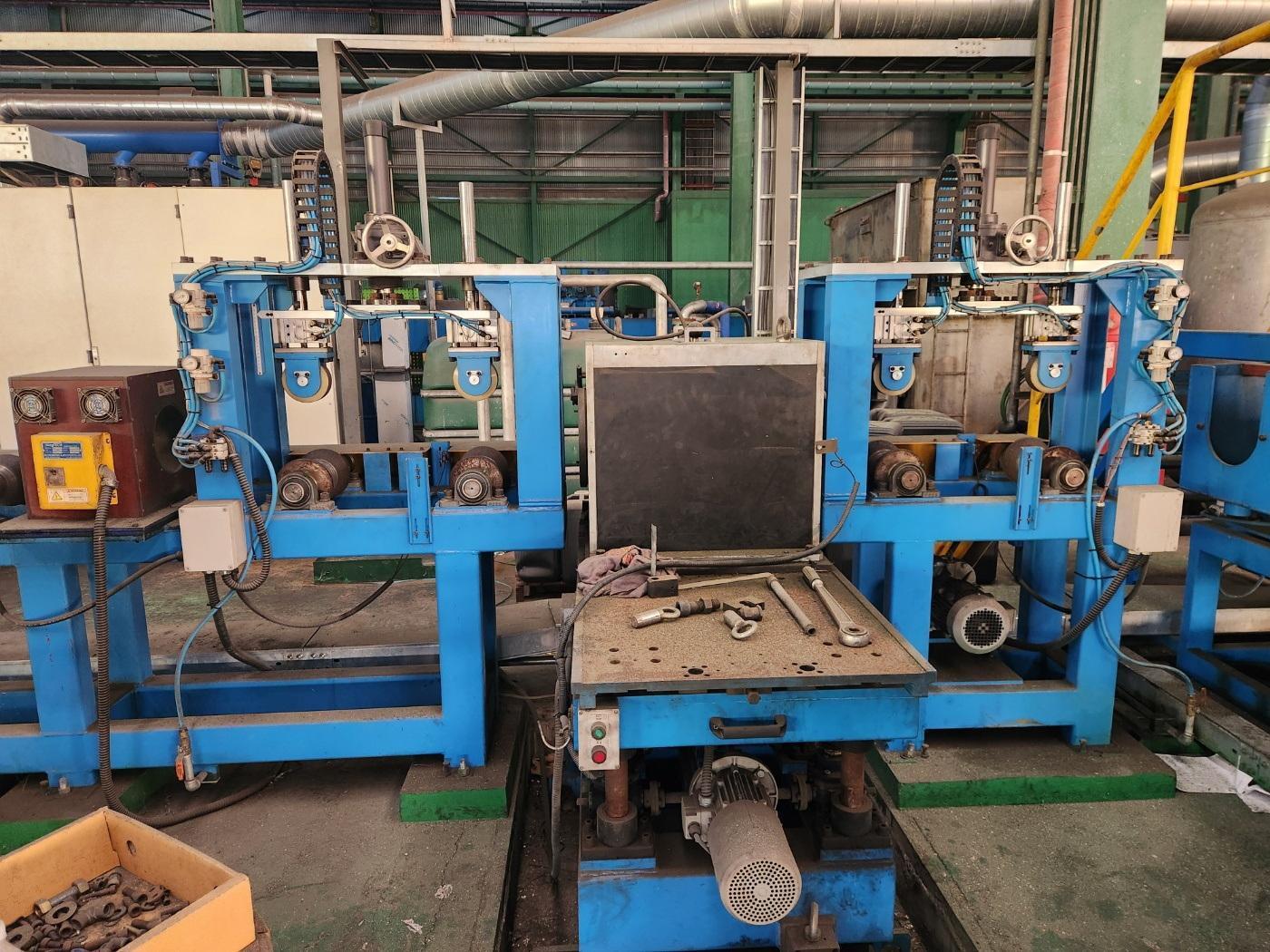

KTM Double Head End Facer
KTM Vertical Cross Roll Straightener
KTM Off Line Eddy Current Tester
Marktec Marking Machine
KTM Packaging Line with Auto Banding
Upgraded Electrical Drives and Controls
