2" (63.5mm) x 2.8mm Tube Mill Line

Brand
Not Specified

Model
Not Specified

Type
Tube Mills

Stock #
605398C

Condition
Used

Year

Request a Quote
Have one to sell?
Tube Diameter 2 inches
Max. Wall Thickness 2.8 millimeters

Equipped With

2 Inch Tube Mill Line Composition
Year 2016

Tube Diameter:  15.9mm - 63.5mm
Wall Thickness:  .8mm - 2.8mm

1. Composition

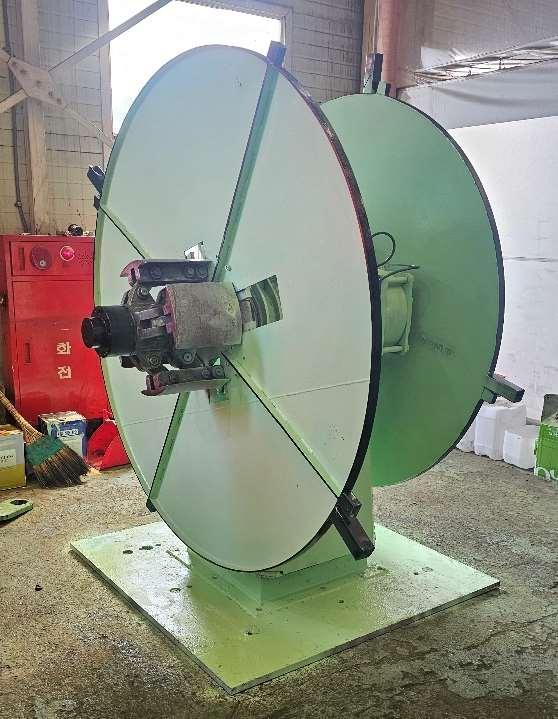

Uncoiler
Welder

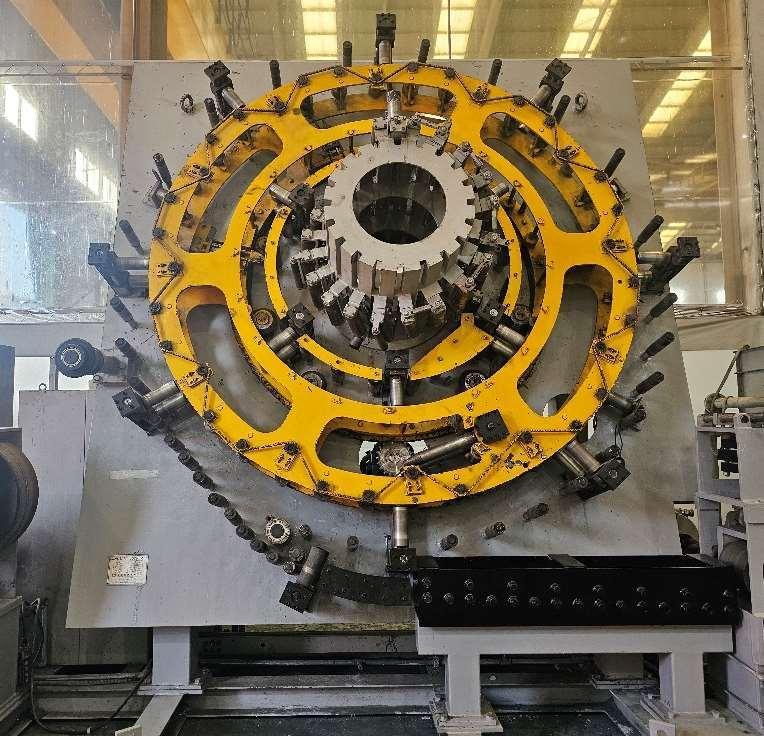

Rotary Looper
Looper

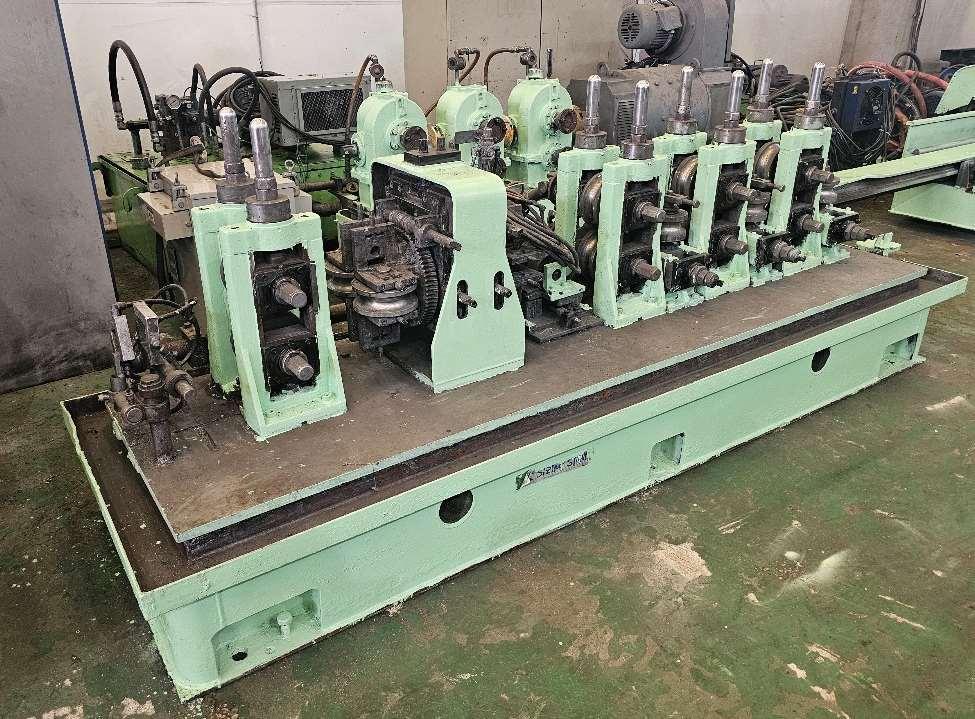

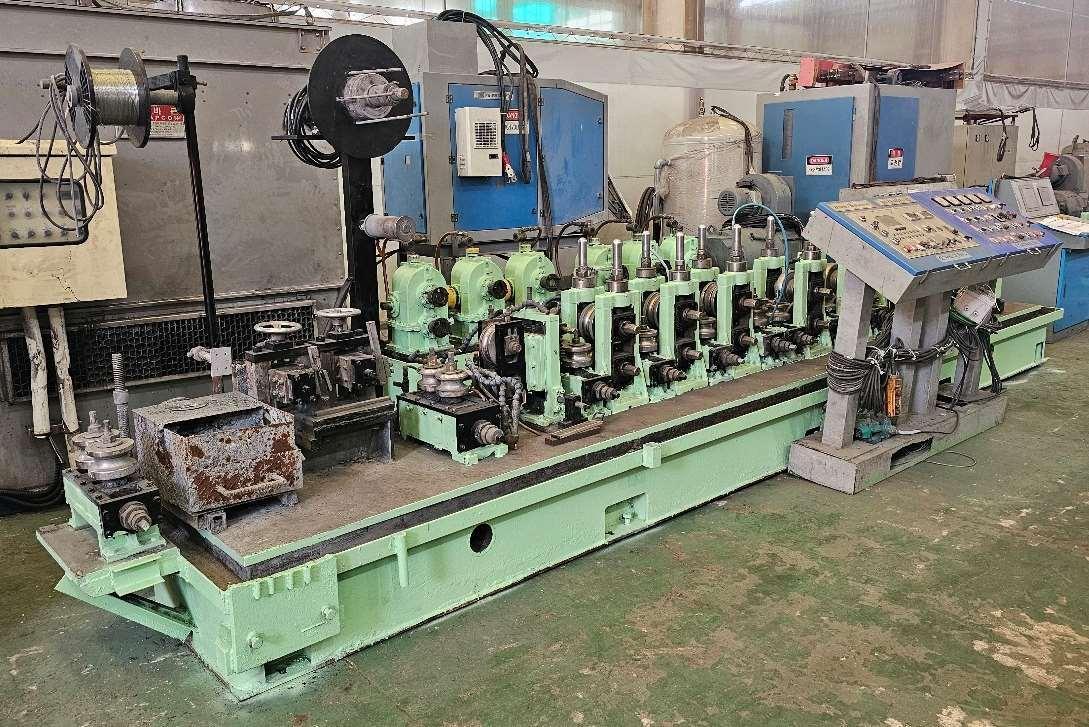

Forming part
Cooling Part
Sizing Part

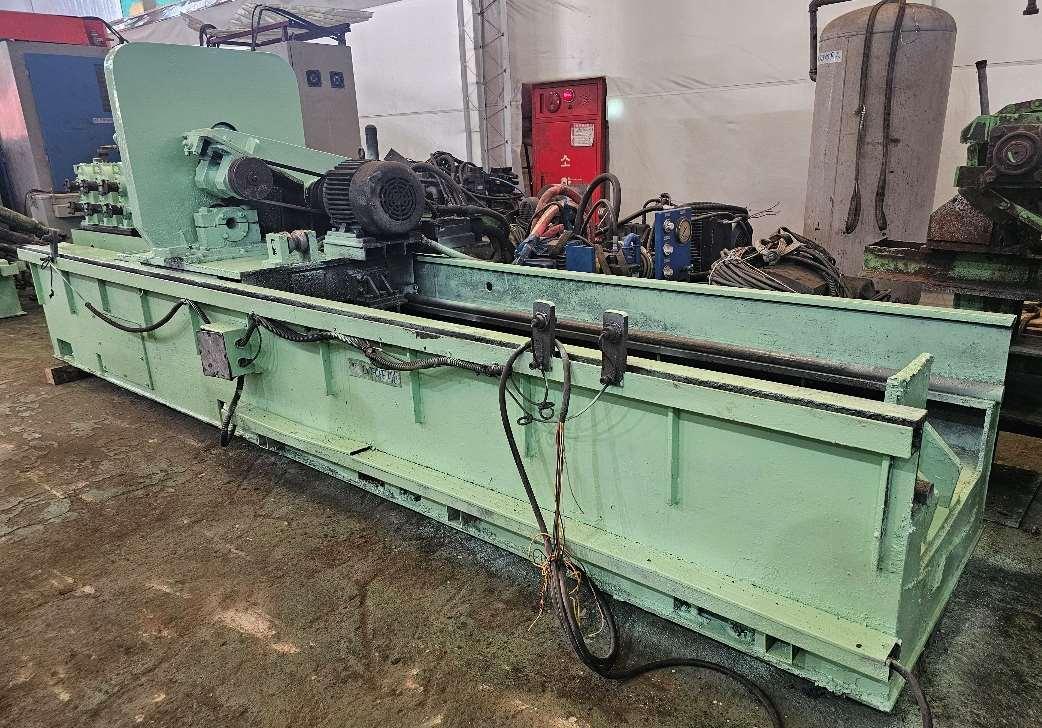

Cut-0ff M/C
End Facing M/C

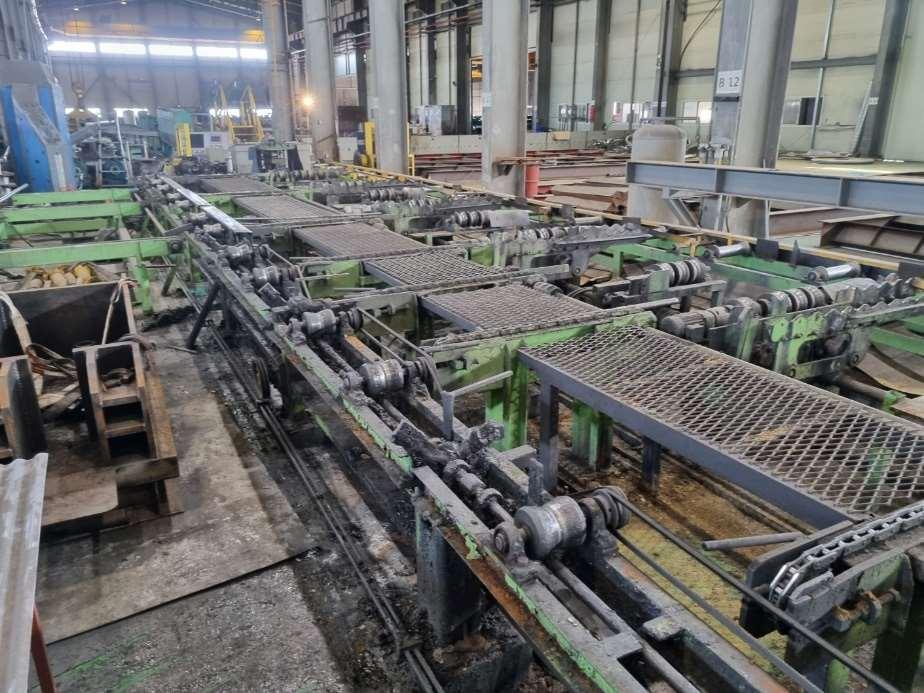

Run Out Conveyor

2. Specification
Coil Outer Diameter              Max. Ø1800 mm
Coil Inner Diameter               Max. Ø508 mm
Hoop Width                            Max 200mm
Line Speed                              Max. 100 m/min
Coil Weight                              3.5 tons
Electrical Power Source        AC 380V, 60Hz, 3P (Main)
Line Direction                          R   →   L
Hydraulic Pressure
Welding Capacity                    200Kw (400KHZ)

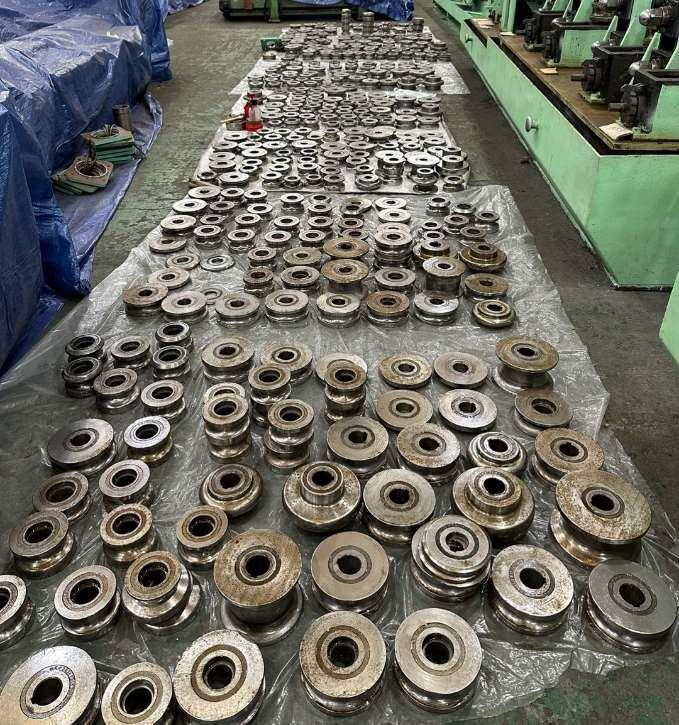

Tooling for Rounds, Squares and Rectangles (17 sets of Tooling)
