Manufacturer: FIMI (Italy)
Year: 1997
Line Direction: Right to Left
MAX SHEET LENGTH: 16,000 MM
MIN. SHEET LENGTH: 500 MM
TOLERANCE ON THE LENGTH: +/- 1 MM
MAXIMUM WORKING SPEED: 40 M/MIN
MIN. COIL WIDTH: 400 MM
MAX ENTRY COIL WIDTH: 2520 MM
Complete Line with the Following Components:
Floor Type Coil Car

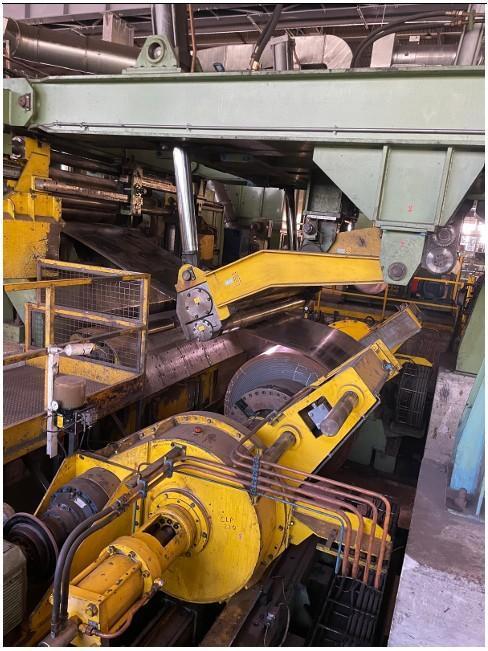

Double Expandable Mandrel Uncoiler
STEP-UINCOILER INTERNAL COILS DIAMETER: 508 – 762 MM
COIL OUTER DIAM MAX: 2400 MM
MIN. COIL OUTER DIAM.: 900 MM
Peeler Hold Down Roll Unit
Entry Pinch Roll and Edge Guides
Entry Crop Shear

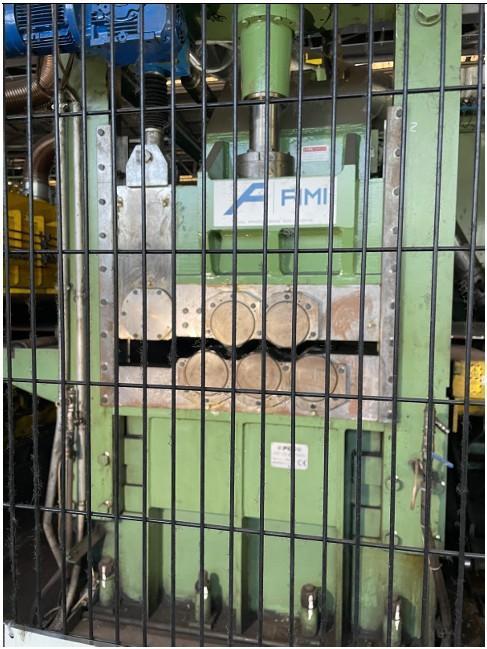

3 Roll Coil Breaker
5 Roll Pre Straightener
200mm Work Roll Diameter

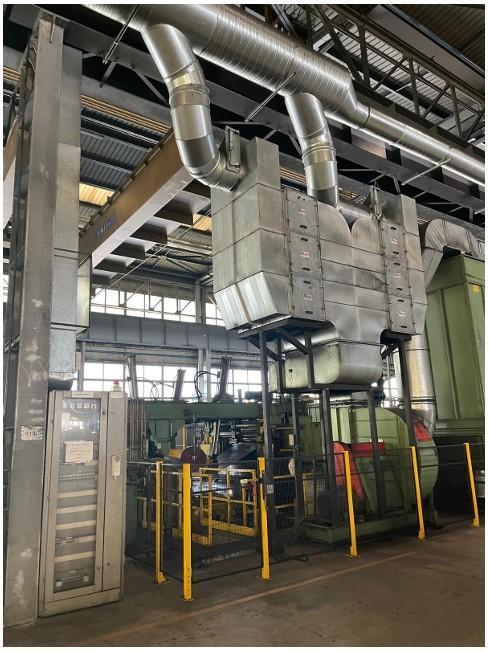

Brushing System with Fumes Extractor Vacuum
9 Roll Straightener
160mm Work Roll Diameter
11 Work Roll Leveler
112mm Work Roll Diameter

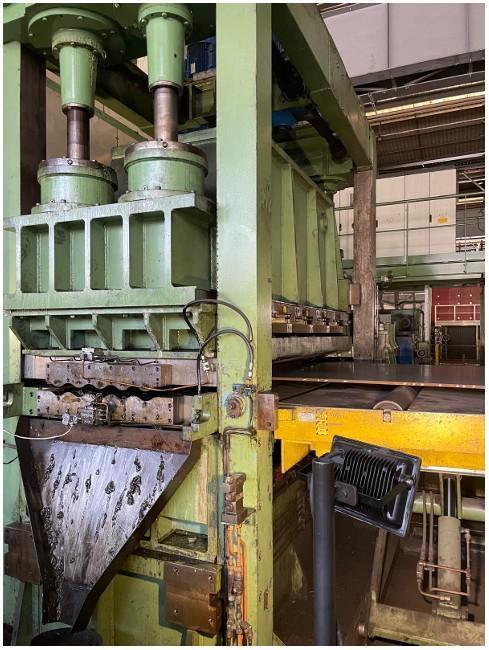

Flying Shear
Run Out Conveyor
Drop Type Stacker
MAX SHEET LENGTH: 16,000 MM
MIN. SHEET LENGTH: 500 MM
Complete Line with Electrics, Controls, Hydraulics.
Installed and Running
