| Tonnage | 300 ounces |
| Stroke | 18 inches |
| Power | 100 horsepower |
| Bed Width | 84 inches |
| Bed Length | 48 inches |
Specs:

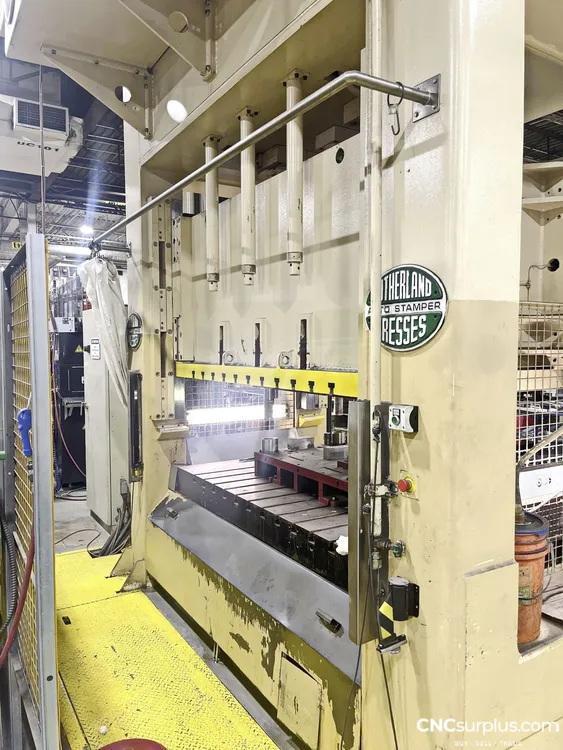

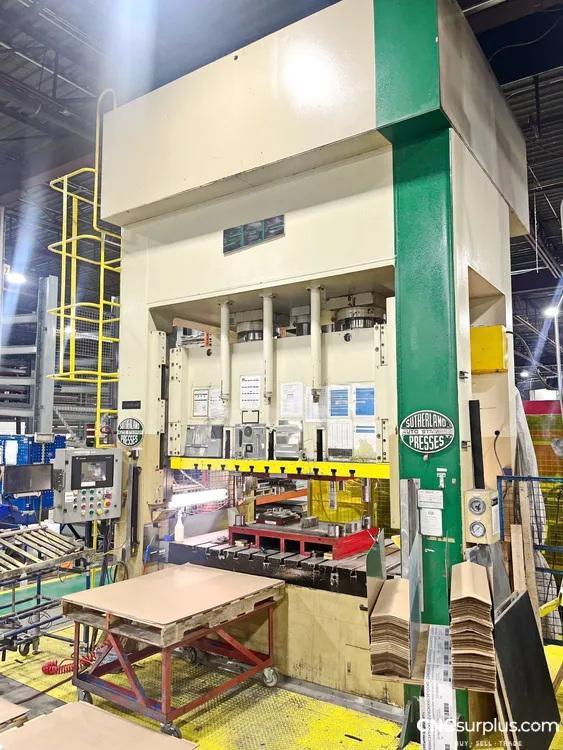

Model: SD3-300-84-48-C
Year: 2001
Bed Size: 84’’ x 48’’
Stroke: 2-18’’ (Adjustable)
Shut Height: 30’’
Speeds:
Rapid approach: 900 in/minute
Normal Press speed: 35 in/minute (10-50% of full tonnage)
Fast Press speed: 70 in/minute (55%-100% of full tonnage)
Rapid return: 900 in/minute
Slide lifting capacity: 15.5 Tons
High-Speed Cylinder: 3.7’’
Full tonnage cylinders: 11.2’’
Slide knockouts: 3 Units
Closed height: 12’’
Bolster thickness: 7’’
Side window: 38’’ x 30’’
Power: 100 hp
Pin pad area: 48’’ x 24’’
Down speed: 350 in/minute
Up speed: 350 in/minute
Ejector capacity: 5T
Ejector Cylinder: 3.7’’
Equipped with:
Allen Bradley control
Linear scale position control
1000 color touchscreen
A-B touchscreen pressure control
Denison vane pump
Light curtains
