Thickness Range: .030” - .135”
Coil ID: 20” - 24”
Entry Coil Width: 6” - 48”
Minimum Slit Width: .500”
Coil Capacity: 45,000#

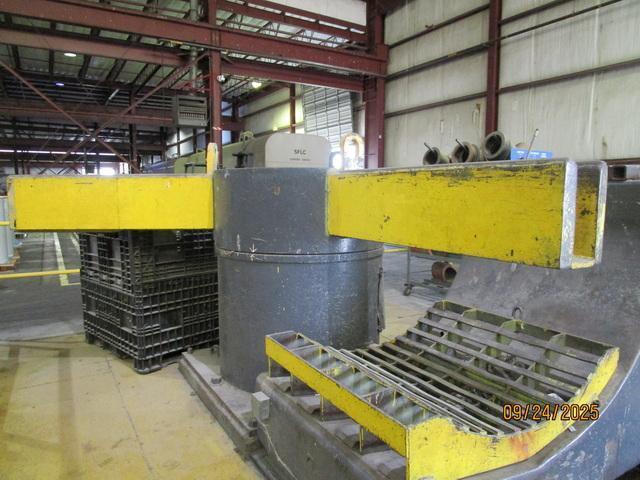

3 Arm Entry Turnstile
Entry L-Type Coil Car

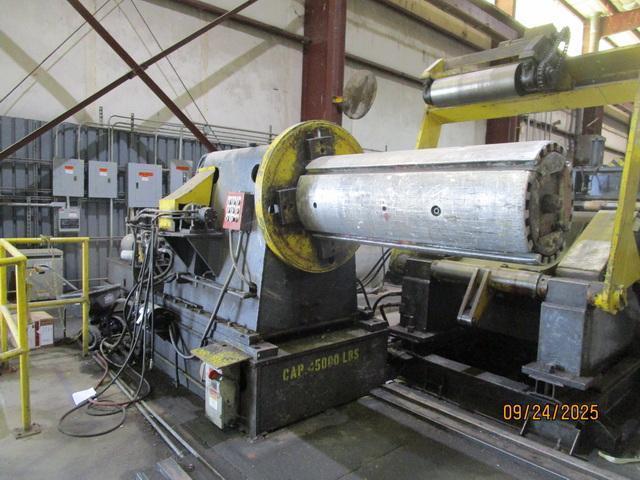

Loopco Mandrel Uncoiler
4 Leaf Hydraulic Expansion
Wichita Water Cooled Brake
Loopco Peeler Hold Down Roll
Feed Up Table

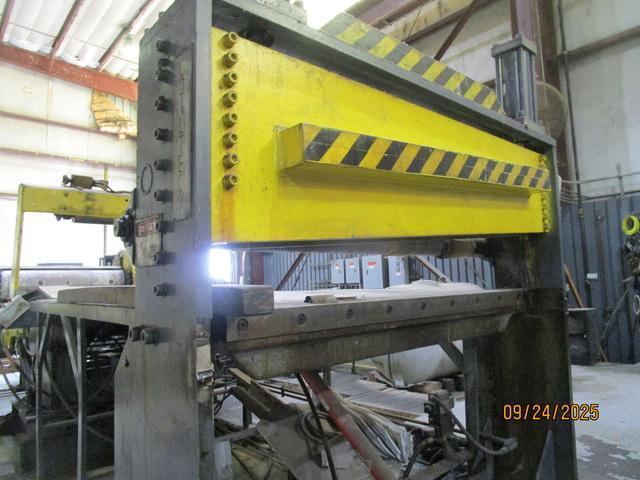

Coil Tech Crop Shear

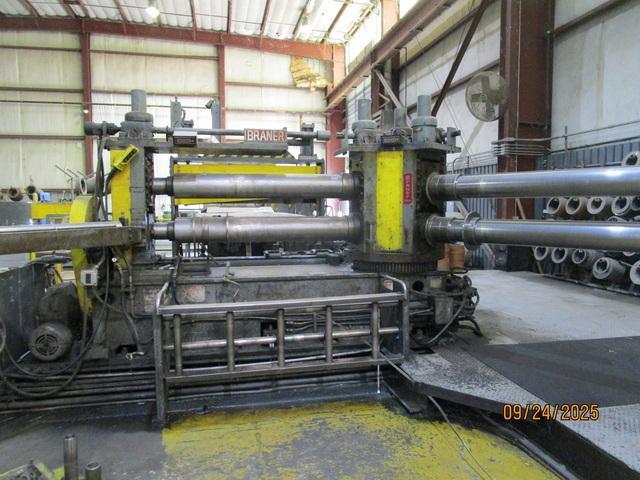

Braner Triple Turret Slitter Head
2 x 7” Diameter Arbor
1 x 8” Diameter Arbor
57” Arbor Face
2 Scrap Winders

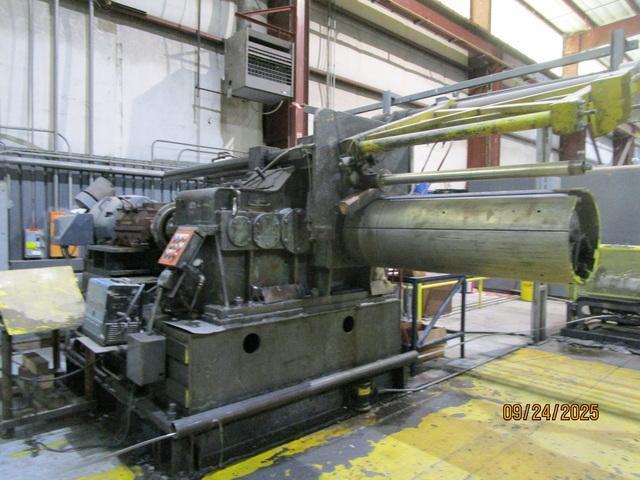

Loopco Recoiler
20” Diameter Hydraulic Drum
58” Drum Face
2 Speed Gear Box. (13.7 & 41.0 Ratio to 1)
75 HP DC Drive 650 / 2000 RPM
Variable Speed Gear Box

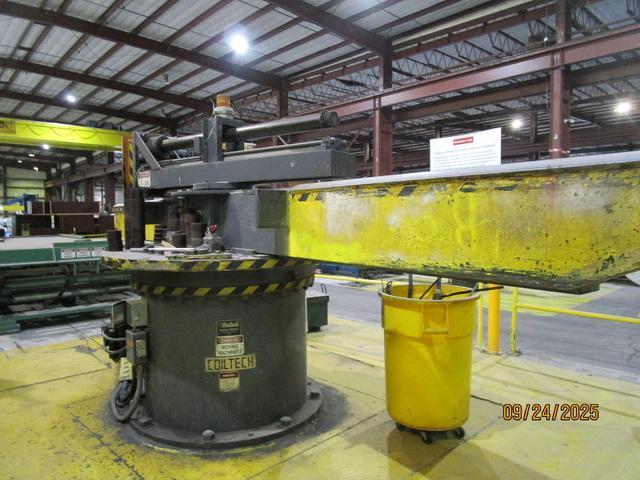

2 Arm Exit Coiltech Turnstile

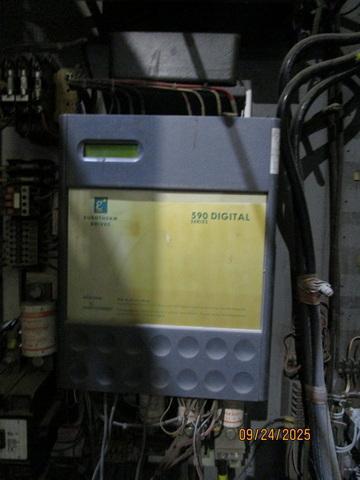

Eurotherm Digital Drives
590 Series

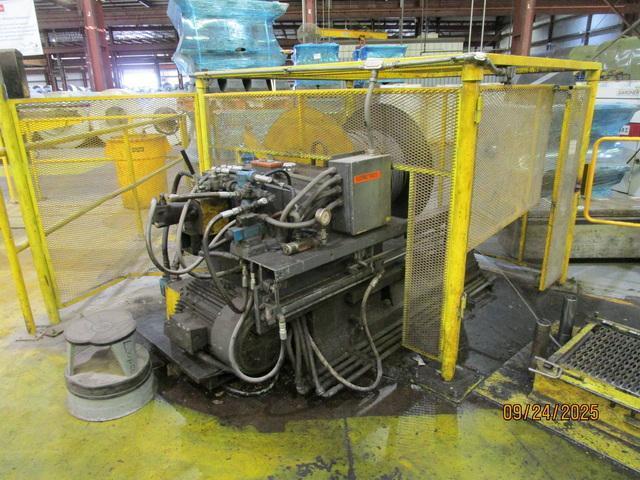

Hydraulics & Electrics
Tooling: Knives / Rubbers / Spacers
