48" x .048" x 20,000# Strilich Multi Blanking Line with Recoiler

Brand
STRILICH

Model
17553040002

Type
Slear Lines

Stock #
605498

Condition
Used

Year

Request a Quote
Have one to sell?
Width 48 inches
Thickness .048 inches
Coil Weight 20000 pounds

Equipped With

General Specifications:
Max Coil Weight- 20,000lbs
Coil Width- 48" Max
Coil OD- 60"Max
Coil ID- 20" Min - 24" Max
Material Thickness- .012" - .048"
Material Yield- 50,000 PSI Max
Length Accuracy-  +/-  1/32"
Line Speed- 120 FPM Max Roll Speed
Cut Length- 24" Min - 120" Max
Max Shear Cuts- 20 Cuts per Minute
Line Direction- Right to Left
Pass Line Height- 40"
Stack Height- 18" Less Skid
Stack Length- 120"
Stack Weight- 10,000lbs

Complete with the Following Components:
Uncoiler
Entry Edge Guides
Paper Unwinder
Pinch Rolls
Shear

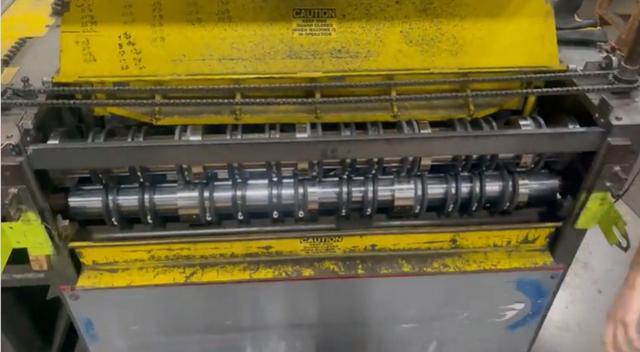

Slitter Head with Bolt on Tooling and Knives
Blank Stacker with Strip Separators
Tension Stand
Recoiler
