| Coil Weight | 50000 pounds |
| Width | 60 inches |

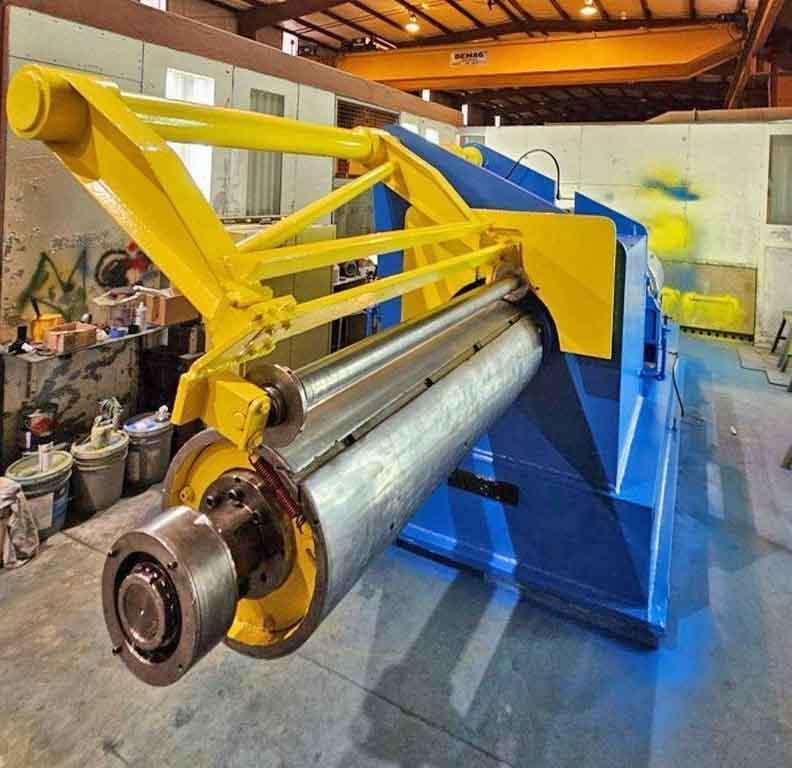

50,000# x 60" Paxson Recoiler

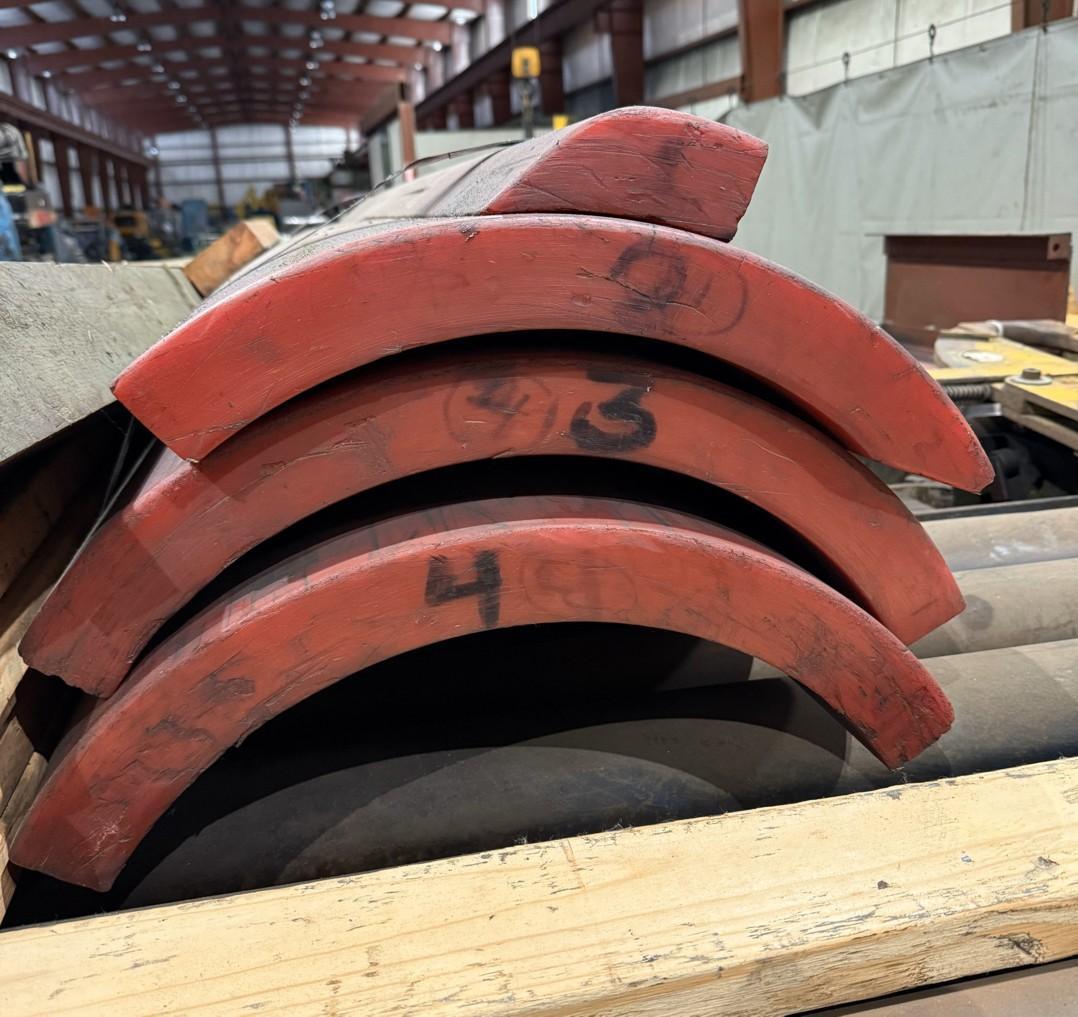

-20" Dia. Drum with 24" Pads
-66" Face Hard Chromed Drum
-84" Max. Coil O.D.
-Powered Clamp and Expansion
-Overarm Separator
-Hydraulic Pushoff
-Air powered Holding Brake
-150 HP Main DC Motor, 850/2000 RPM, 500 V (Less SCR Drive)
-Main Gear Box w/3.5:1 Ratio (approx.)
-D.O. James 2 Speed Reducer w/5.41:1 and 10.8:1 Ratios
-Outboard Bearing Support for 50,000# Capacity
Note: 40,000# Capacity without Outboard Support
-Passline: 48" from Floor to center of Drum
-Line Direction: Right to Left
