Year 1987
Machine is designed to remove physical defects of flatrolled steel such as Edge Wave,
Center Buckle,Cross Bow, and Camber.
Thickness Range: .024 - .135"
Coil Capacity: 40,000#
Coil OD: 72"
Coil ID Entry: 16" - 24"
Coil ID Exit: 20" & 24"
Mechanical and Electrical Tension Control
Shape Correction
Elongation
Programmable Speed, Elongation and Tension
Reverse Bending
Allen Bradley Digital Controls
Allen Bradley Digital Drives Model 1395
Allen Bradley PLC Model 5 / 30
Complete Line with:
L-Type Coil Car
Floor Standing / Self Contained Hydraulics
Cincinnati Mandrel Uncoiler
Sliding Base
Powered Hold Down Roll
Feed-Up Drive
Hydraulic Expansion
Air Clutch and Brake
Peeler Table

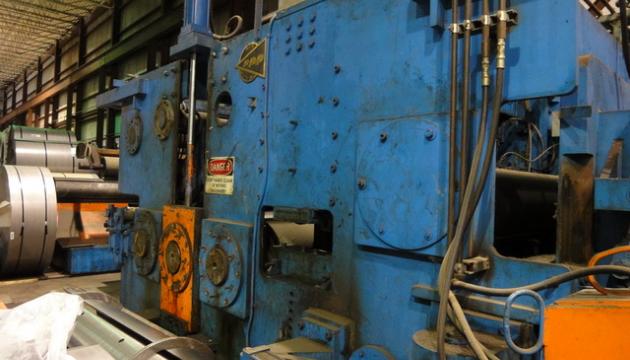

Delta Brands Equalizer Tension Leveling Unit
Entry Tooling Shafts
20" Diameter Adjusable Tension Roll with Dual Water Cooled Brakes
23.375" Diameter Driven Entry Bridal Roll
23.375" Diameter Downward Presure Drven Tension Roll
23.375" Diamater Driven Exit Bridal Roll
3 Roll Backed-Up Tension Leveler Roll Cluster with 2" Dia Rolls
20" Diameter Adjustable Tension Roll with Dual Water Cooled Brakes
12" Diameter Bottom Pivoting Pressure Roll
Exit Crop Shear
Exit Feed-Up Table
250 HP DC Drive
2 Speed Gear Box
Recoiler
Out Board Bearing Support
Hydraulic Drum
Hydraulic Push-Off
Overarm Seperator
2 Speed Gear Box
250 HP DC Recoiler
Complete Line with Hydraulics, Electrics & Controls
NOTE: Equalizer can also be installed at the exit end of a slitting line priot to recoiling to tension level strips.
