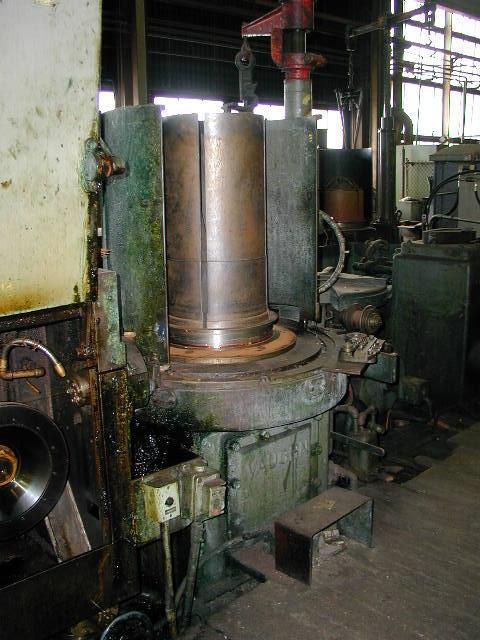

13 DIE -CAPACITY -MAXIMUM START: .3125" (7.9mm) -MINIMUM FINISH: .035" .9 mm) -BLOCKS -TYPE:
STEP CONES CERAMIC COATED -QUANTITY: 4 -DIAMETER: 15 1/2" (393.7mm) O.D. -FINISH BLOCK -
DIAMETER: 16" (406.4mm -HEIGHT: 32" (812.8mm) EQUIPPED WITH RIDING STRIPPER -DRIVE MOTOR:
250 HP (186.4kw) 1780 RPM 575 VOLTS -SPOOLER #1 -TYPE: TRAVERSING DOUBLE PINTLE TYPE WIRE
GUIDE TRAVERSE -SPOOL CAPACITY -DIAMETER: 24" (635mm) MAX 22" (558.8mm) O.D. X 13" WIDE
SPOOLS USED -DRIVE MOTOR: 25 HP (18.6kw) 1150 RPM AC 550 VOLT -SPOOLER #2 -TYPE: TRAVERSING
DOUBLE PINTLE TYPE WIRE GUIDE TRAVERSE -SPOOL CAPACITY -DIAMETER: 24" (635mm) MAX 22"
(558.8mm) O.D. X 13"
WIDE SPOOLS USED -DRIVE MOTOR: 10 HP (7.4kw) 1750 RPM AC ADJUSTO-SPEED
