Manufactured: 2025
INSTALLED AND RUNNING!!
Material type : hot rolled coil, galvanized coil.

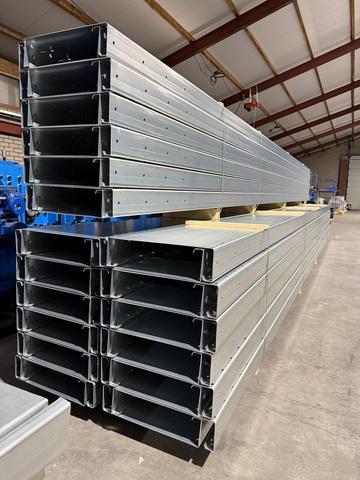

Products: C+/ Sigma+, Purlin
Machine speed > 0-35 m/min
Yield strength : 390MPa
Thickness : 2.5-5.0mm (machine can form 5.0mm thick material)
Purlin length : 1.5-16.5mts
Complete Line with the Following Components:

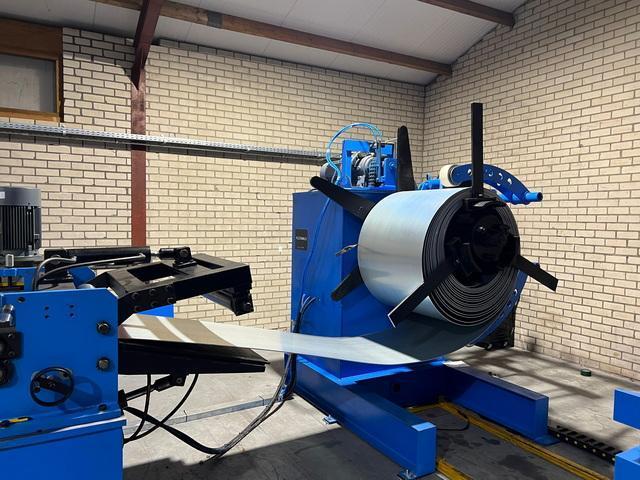

Hydraulic Uncoiler with Coil Car

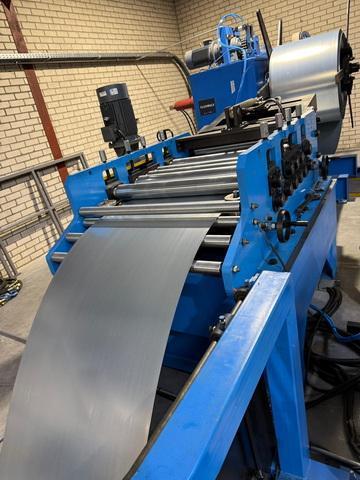

Reception Table and Flattening Station

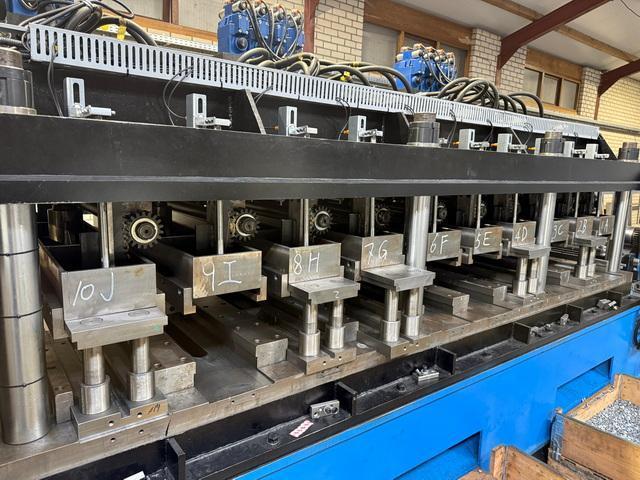

Pre- Punch Station
10 sets, each set for one single hole or one dual hole.
All the double punches are included that are mentioned
ASTM D3, quenching
Servo motor feeding

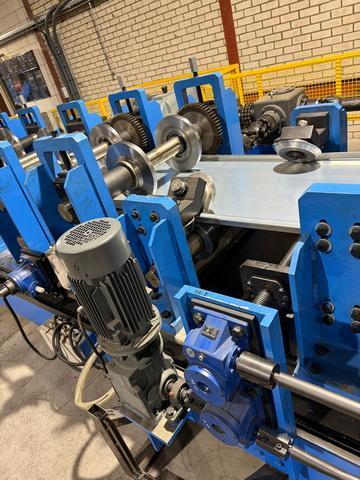

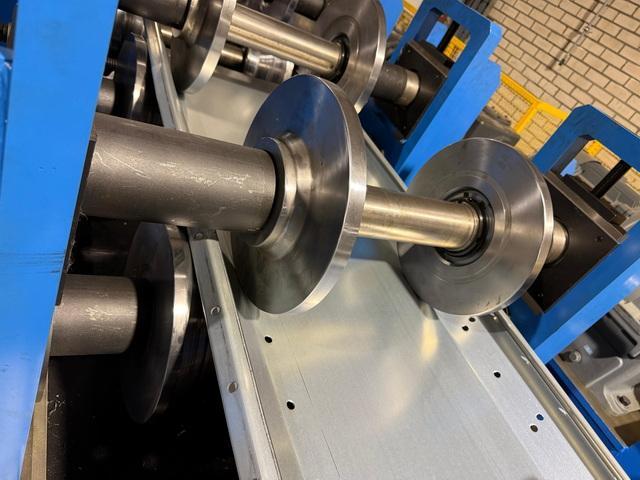

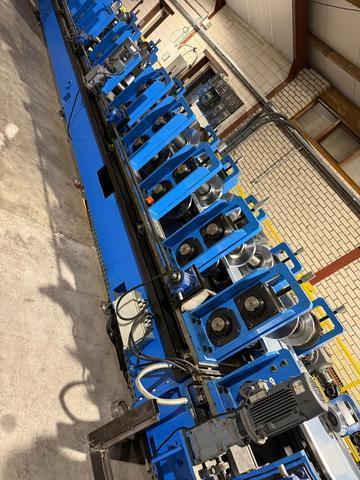

Main Roll Forming Machine
28 stations, including 6 stations for sigma+ profiles.
Fully Automatic Size Change by Servo Motors with PLC Control
45 Kw x 2 three-phase asynchronous motor
Flying Cut Off
Post hydraulic mold cut, non-stop cut
Cutting mold : 11 pes (extra cost if need more pieces)
Inkjet Printer

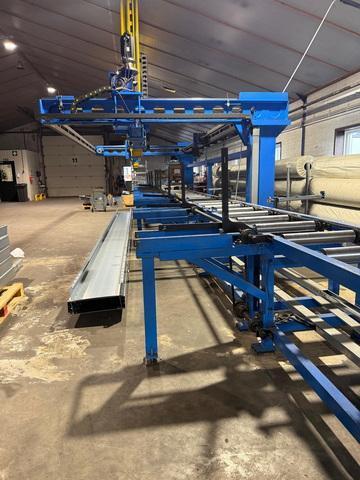

Magnet Type Auto Stacker
Complete Line with Hydraulics, Electrics, Controls
