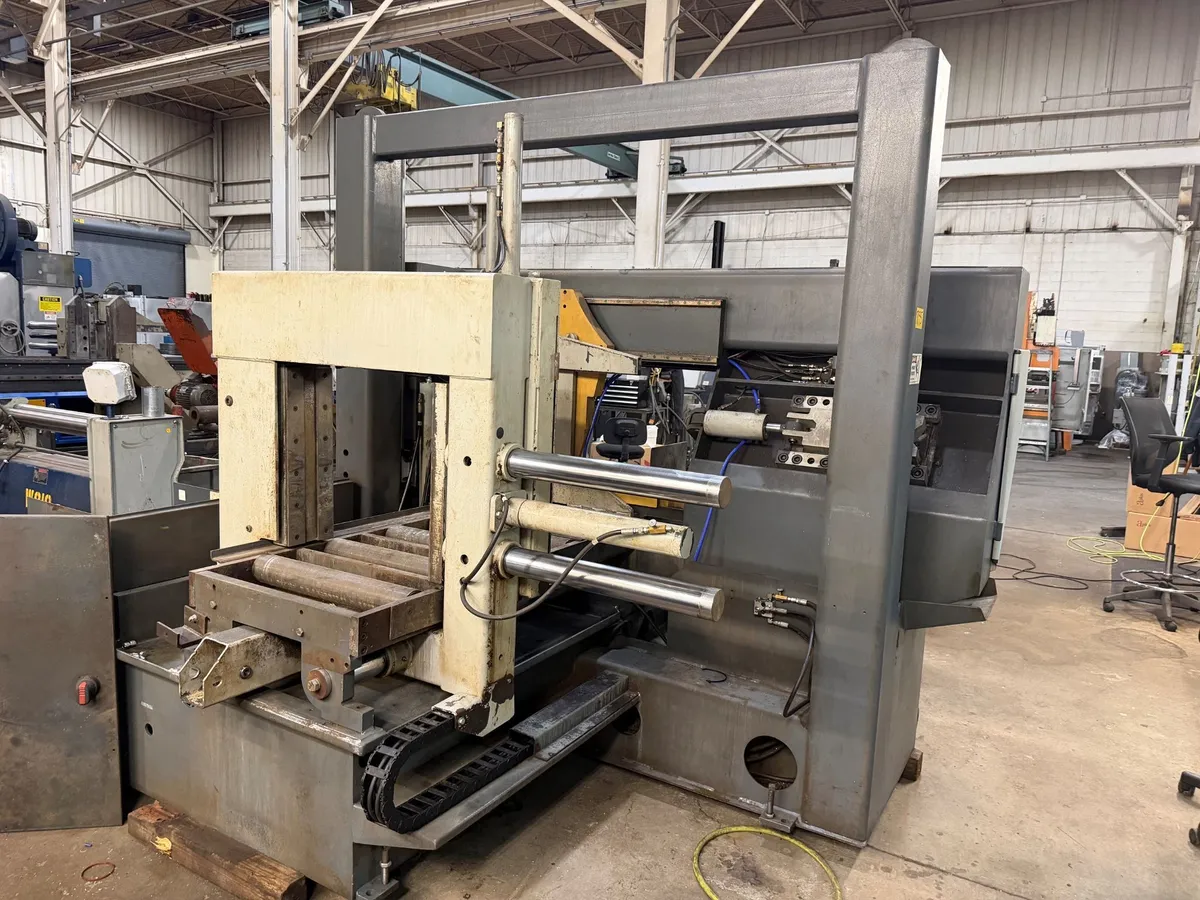

Hyd-Mech 22" x 22" automatic dual column horizontal bandsaw model H-22A

Brand
HYD-MECH

Model
H-22A

Type
Saws, Band, Horizontal

Stock #
605661

Condition
Used

Year

Request a Quote

Have one to sell?

General Specifications:

Capacity: 22" x 22"

Blade size: 22'6" x 2" x .063"

Blade speed: 40 - 300 FPM (variable frequency drive)

Blade guides: Carbide

Blade wheel diameter: 27"

Blade drive: 10 H.P.

Hydraulic motor: 3 H.P.

Hydraulic tank capacity: 9 gallons

Coolant tank: 30 gallons

Shuttle stroke: Up to 34" single stoke (multi index up to 9x)

Vise control: hydraulic

Table height: 31"

Maximum work load: 15,000 Lbs.

Voltage: 480 volt 3 phase

Dimensions: 141" x 89" x 93"

Weight: 12,500 Lbs.
