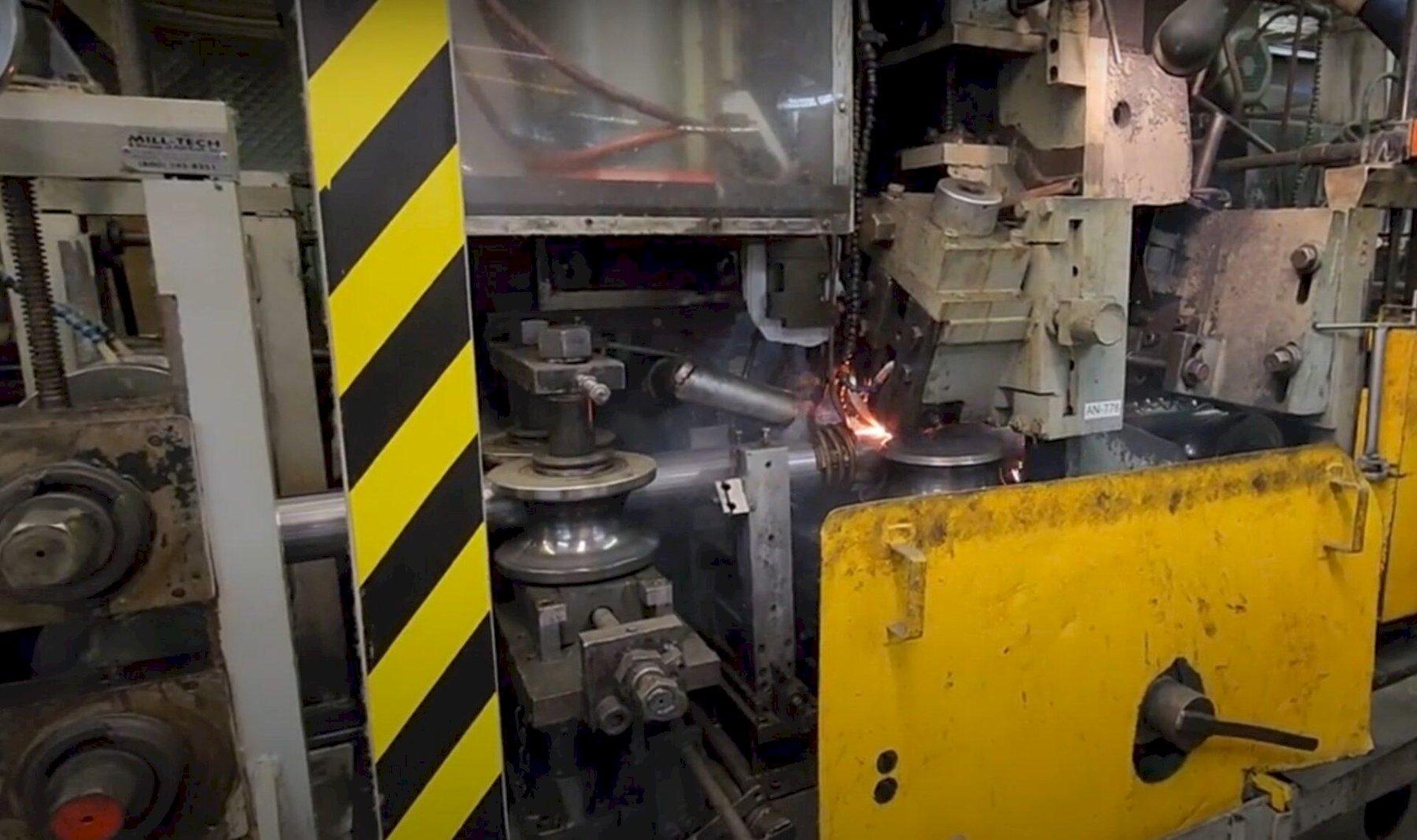

6" x .125" Mill-Tech Tube Mill
6" x .125" Mill-Tech Tube Mill
6" x .125" Mill-Tech Tube Mill
  • 6" x .125" Mill-Tech Tube Mill
  • 6" x .125" Mill-Tech Tube Mill
  • 6" x .125" Mill-Tech Tube Mill

6" x .125" Mill-Tech Tube Mill

Brand
Not Specified

Model
AM23360

Type
Tube Mills

Stock #
605664

Condition
Used

Year

Request a Quote
Have one to sell?
Tube Diameter 6 inches
Max. Wall Thickness .625 inches

Equipped With

Tube OD (Maximum): 6” / 4.5" square
Strip Width (Maximum): 26"
Dist Between Passes: 24"
Max Upper Roll Height: 32.875"
Min upper roll Height: 23.125"
Lower Roll Height: 14.125"
Key size: .625"
Shaft OD: 4"

Includes:
Primary welder – Thermatool VT-160
Shear and seam welder
American uncoiler max OD 72" OD x 24" ID / 20" ID min.

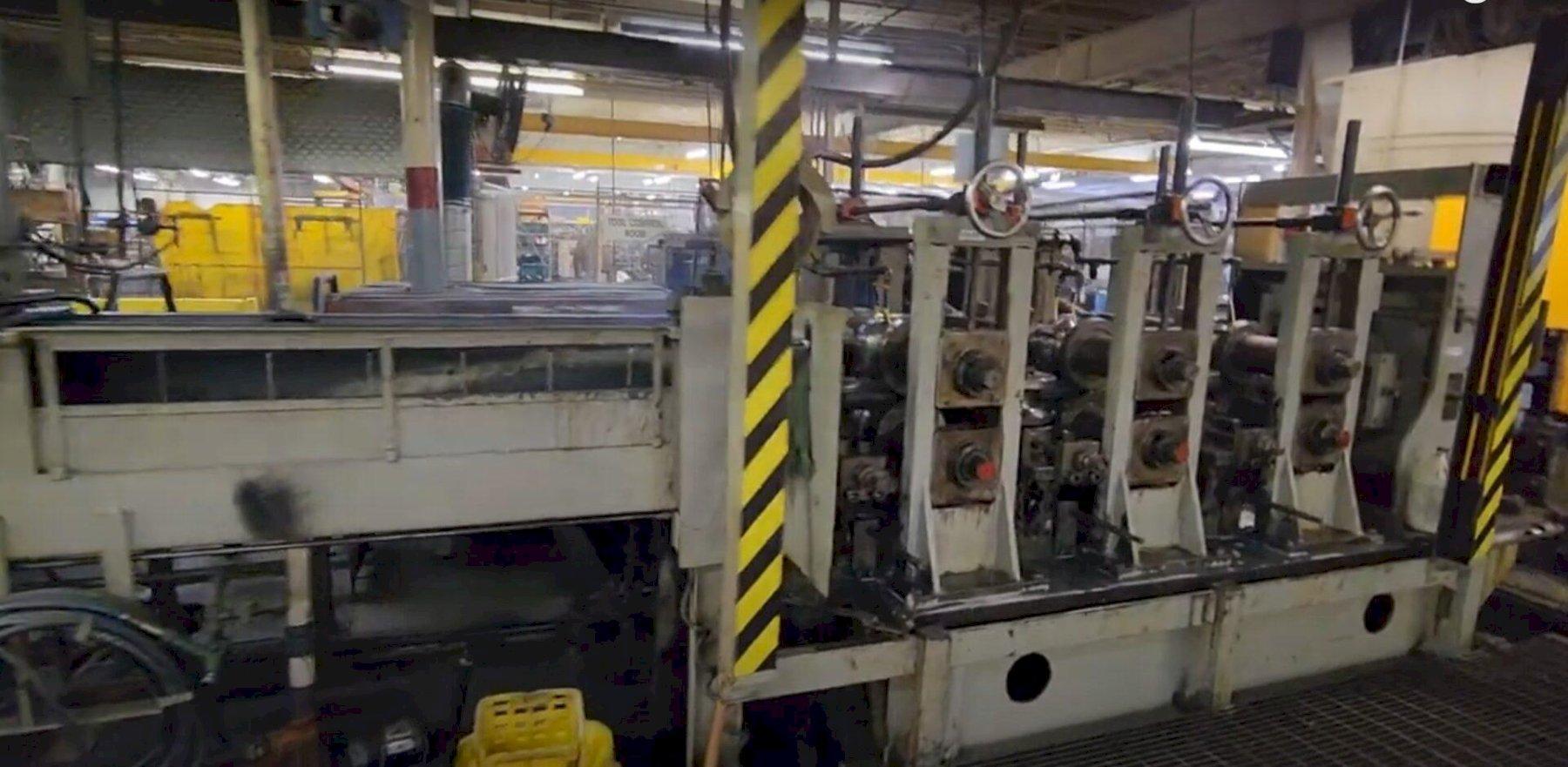

Forming Mill includes:
o   (8) Forming roll stands
o   (6) Side roll stands
