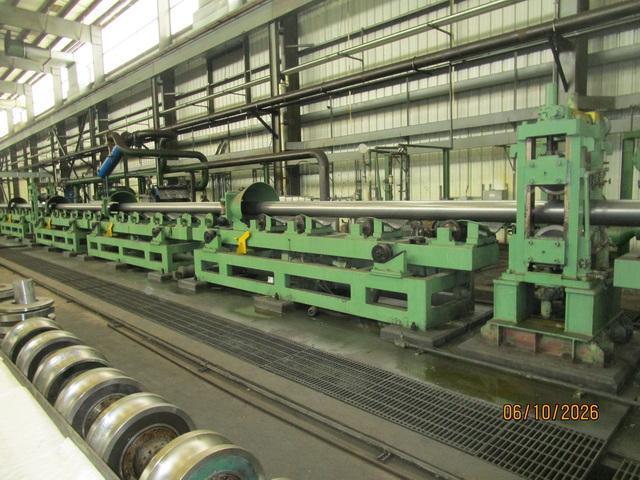

Equipped With
Year 2013
Pipe Diameter Range: 7 5/8" - 2 3/8" (194mm - 60.3mm)
Wall Thickness: .500" - .118'" (12.7mm - 3mm)
Max Line Speed: 230 FPM (70 Meters/ Min)
Max Yield Strength: 550 N/mm2
Coil Capacity: 22,000 kg
Max Coil OD: 2200mm
Coil ID: 508mm - 610mm - 760mm
Tooling:
4 1/2" - 2 Sets
5 1/2" - 5 Sets
6" - 1 Set
6 5/8" - 2 Sets
7" - 1 Set
7 5/8" - 2 Sets
Nakata Break Down Rolls - 2 Sets
Mill Features:
Nakata FFX Forming Mill
Nakata Flexible Forming
Upgraded Allen Bradley / ABB Digital Drives
PLC: Siemens & Allen Bradley
Allen Bradley Touch Screen Controls
Allen Bradley Panelview 1000 Digital Readouts
200mm Main Shaft Diameter
Auto Tooling Change
ID Scarfing
Auto Injector Quick Change Tooling on Finn and Sizing Stands
Cartacci 10 Roll Straightener
Complete Mill With:

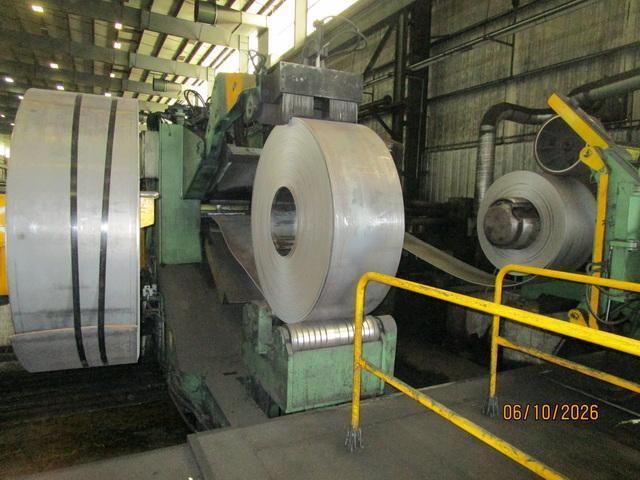

4 Arm 25 Ton Entry Turnstile
Oto Mills Entry Coil Prep Station
Coil Car
Hold Down Roll
Coil Breaker
Peeler Table
Crop Shear
Oto Mills Mandrel Uncoiler
Oto Mills 5 Roll Flattener
Oto Mills Automatic Shear & End Welder
Allen Bradley Panelview 600 Digital Readouts
Nakata FFX Auto Forming Mill
2 Sets of Entry Edge Guides
(PR1) Pinch Roll (2 x 30kw Drives)
1 Set of Edge Guides

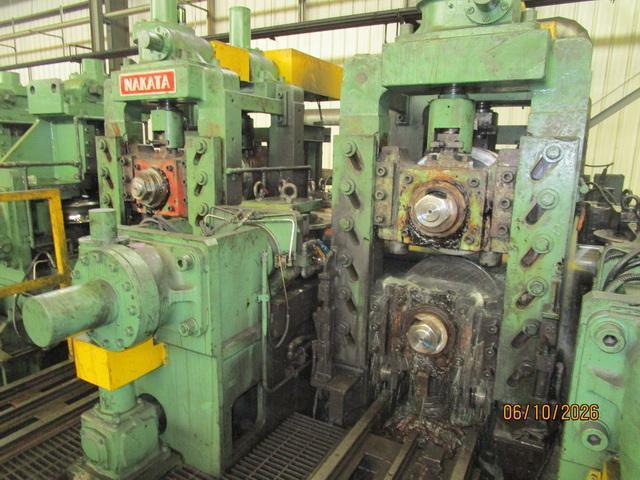

(BD1) Breakdown Stand (2 x 30kw Drives)
(PR2) Pinch Roll (2 x 30kw Drives)
(BD2) Breakdown Stand #2 with (2) 30 kw AC Drive Flexible Forming
(BD3) Breakdown Stand #3 with (2) 30 kw AC Drive Flexible Forming
(BD4) Breakdown Stand #4 with (2) 30 kw AC Drive Flexible Forming
(All Breakdown Stands Have Servo Roll Adjustments)
(RVS) Reverse Bend Stand with Flexible Forming

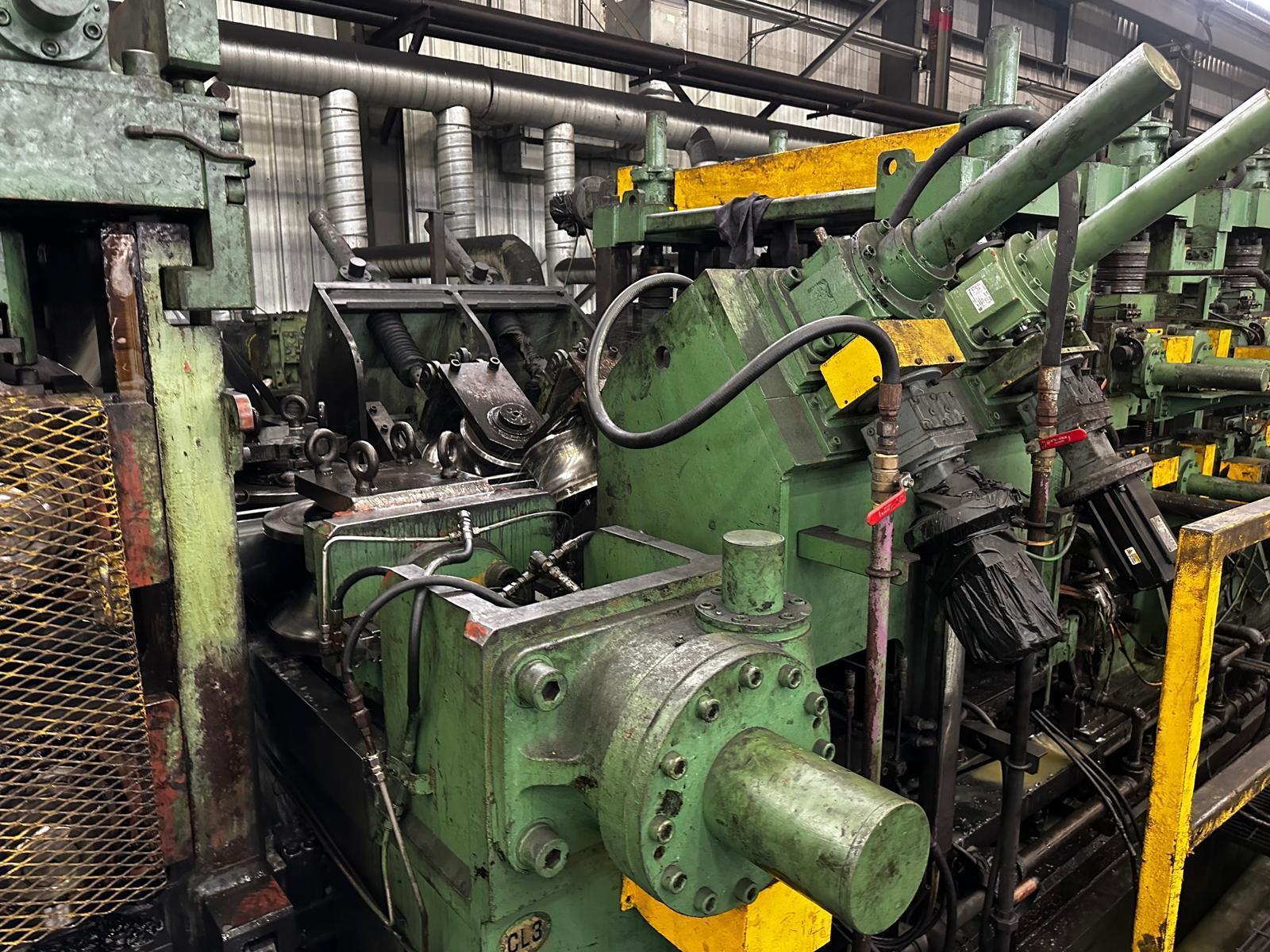

2 Stand Cluster #1 & #2
Side Idler Roll Stand
(FP1) Finn Pass (2 x 75 kw AC Drives)
Side Idler Roll Stand

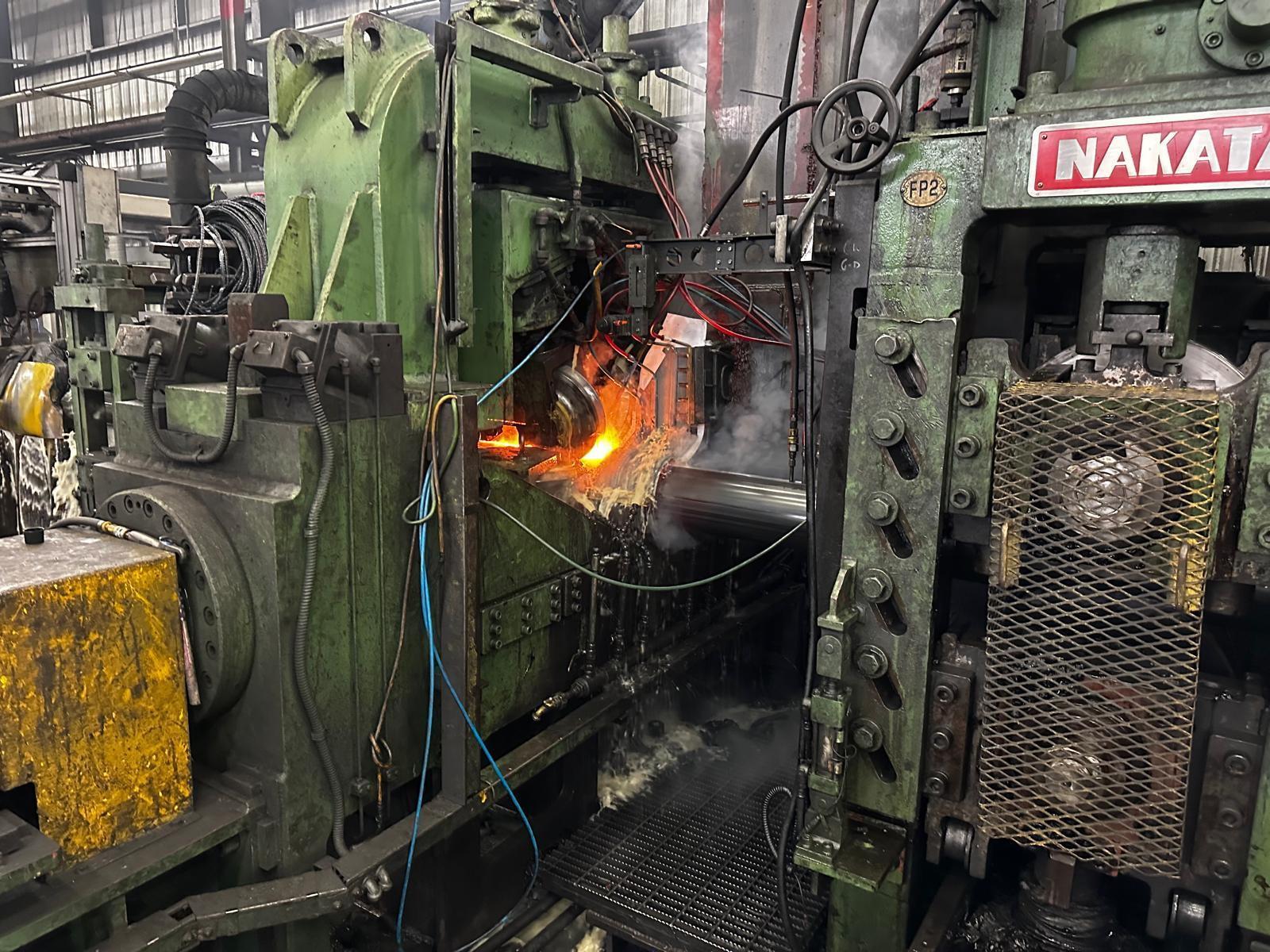

(FP2) Finn Pass (2 x 75 kw AC Drives)
Finn Stands have Auto Injector Quick Change Tooling
(VC) V-Angle Control Device
Welding Section:
3 - 5 Roll Type
2 OD Bead Scarfer
ID Scarfing with Auto Choppers
(SZ1) Sizing Stand (2 x 45kw AC Drives)
Auto Injector Quick Change Tooling
200' Air Cooling
40' Water Spray Cooled
Side Idler Roll
(SZ2) Sizing Stand (2 x 45kw AC Drives)
Side Idler Roll
(SZ3) Sizing Stand (2 x 45kw AC Drives)
Sizing Stands have Auto Injector Quick Change Tooling

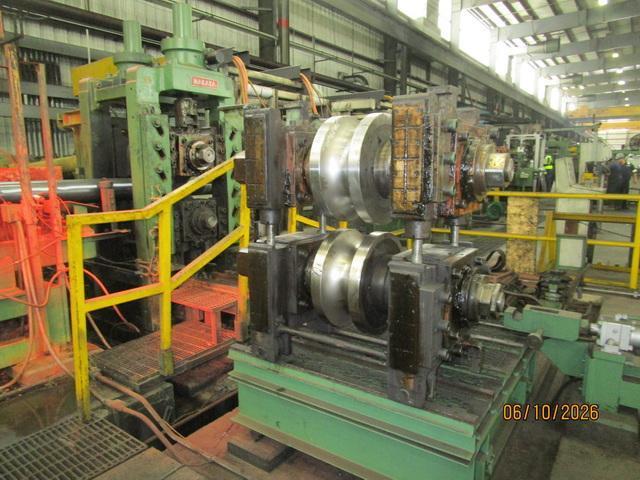

(2) 4 Roll Turks Heads

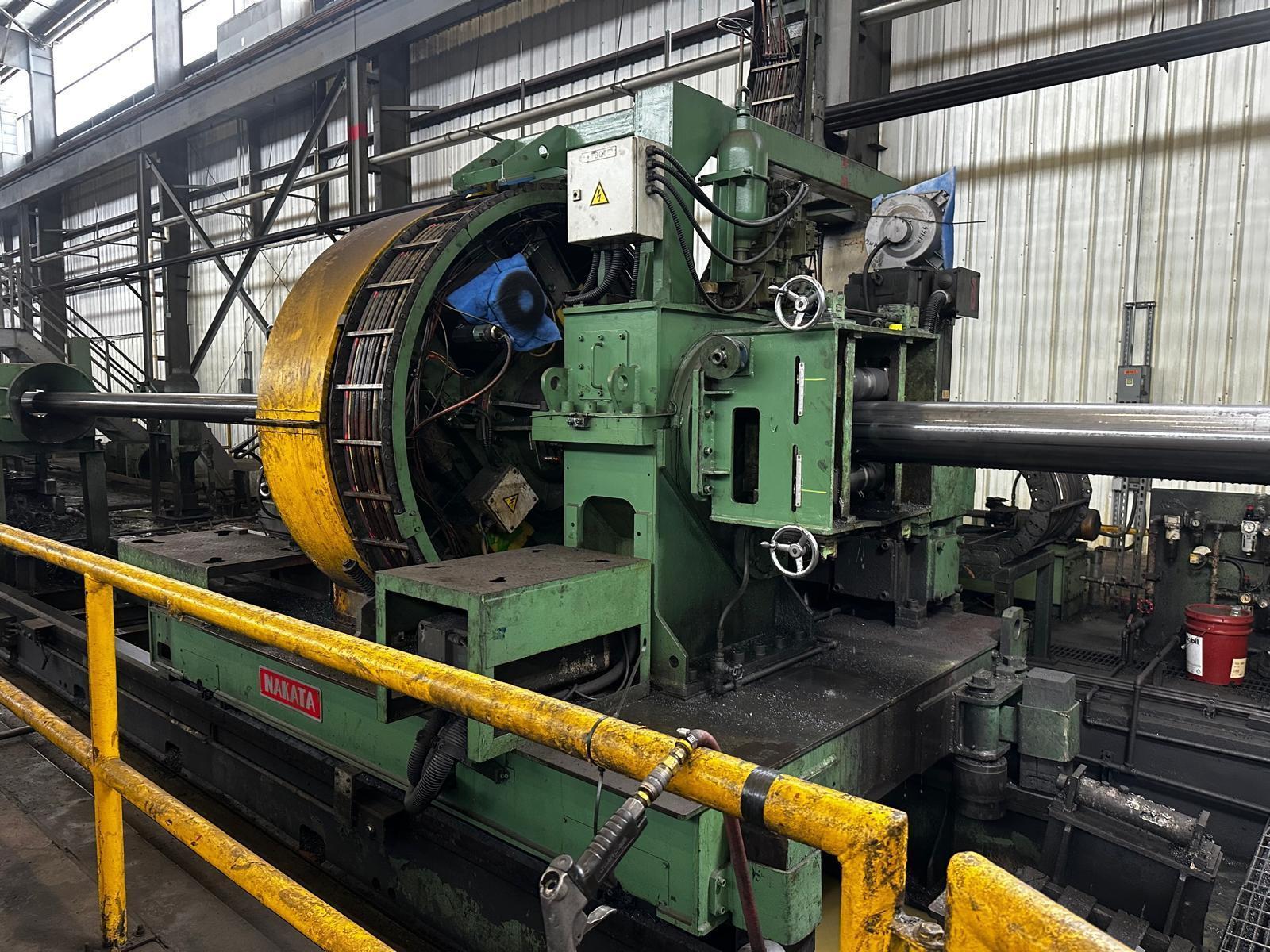

Nakata Flying Cut-Off
Model RLC210-70
Dual Carbide Blade
AC Servo Motors

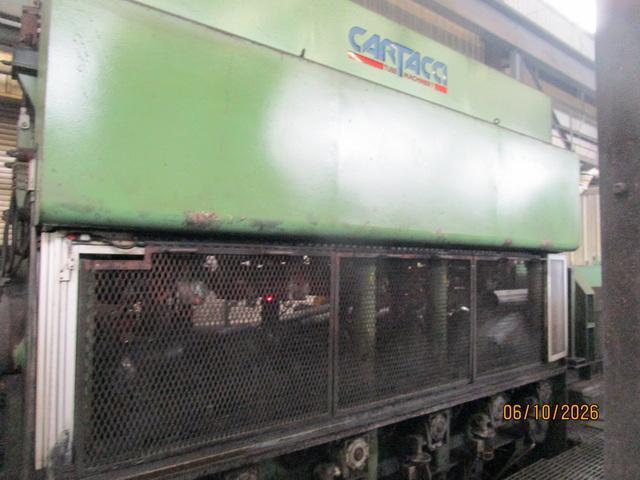

Cartacci 10 Roll Tube Straightener
Year 2013
Entry & Exit Tables

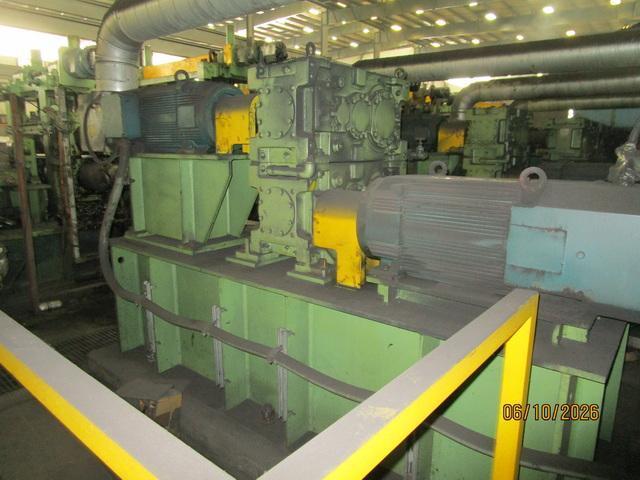

2 Motor Drive (2 x 98 KW)
Spare set of Rolls
Large Quantity of Spare Parts
Spare Turks Heads Stands
Spare Weld Box
Spare Cluster Stand
Shafts / Spindles / Bearings
Roll Changing Carts
ETC.
