Equipped With
Year 2003
Thickness Range: .5mm - 3mm
Coil Width: 250mm - 1500mm
Coil Capacity: 21 Ton
Line Speed: 200 MPM
Slitting Accuracy: 0.2mm
Cutting Capacity: 21 Cuts @ .5mm
Arbor Diameter: 190mm
Entry Coil ID: 508mm / 610mm
Exit Coil ID: 508mm
Coil OD: 1680mm
Line Direction: L - R
Complete Line WIth:

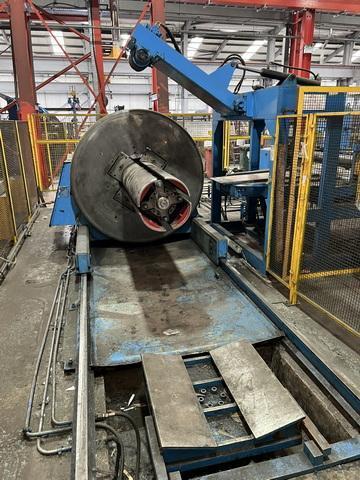

Mandrel Uncoiler
4 Leaf Hydraulic Expansion
Sliding Base
Hold Down Roll
Powered
Drag Brake
Coil LIft
Peeler Table
Pinch Rolls
Feed Up Table

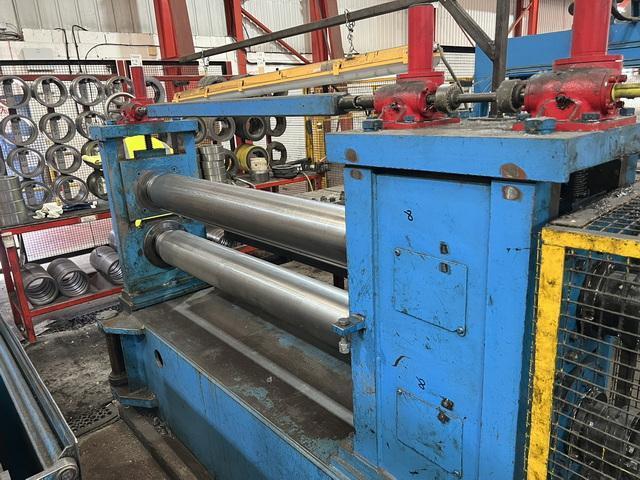

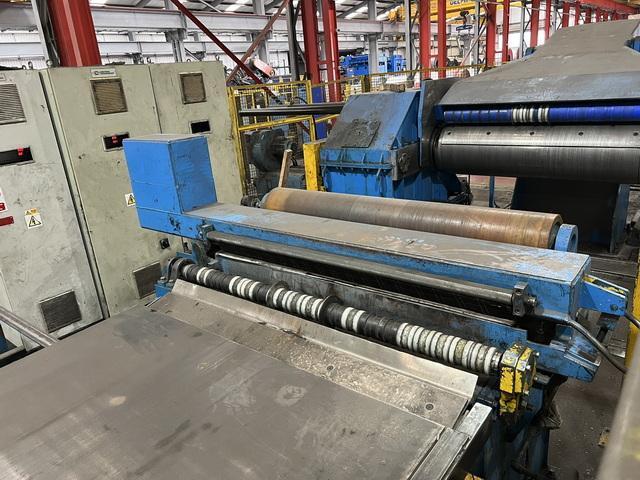

Slitter Head
190mm Diameter Arbors
Swinger Outboard for Tooling Change
Entry Edge Guides
50 KW DC Slitter Drive

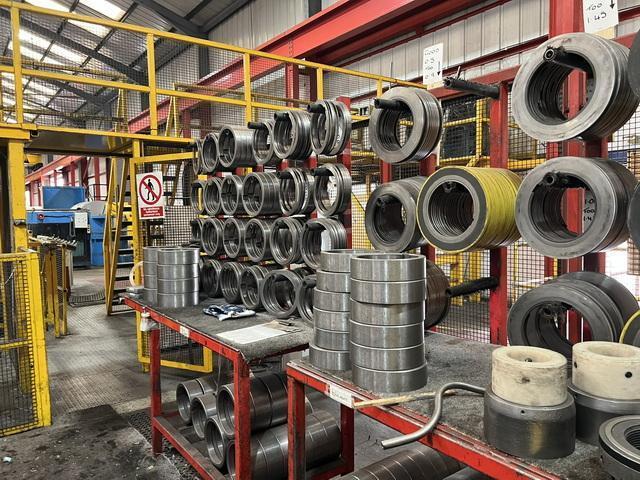

Shimless Tooling
Looping Pit Cascade Rolls
Looping Pit Cross Over Table
Scrap Choppers
Drag Board Tension Stand
Pass Line Roll

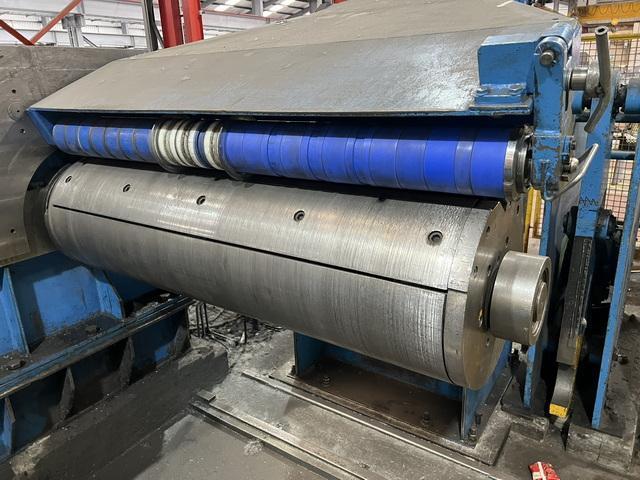

Recoiler 20"
Hydraulic Drum
Outboard Bearing Support
Hydraulic Push-Off
Overarm Separator
70 KW DC Drive
Exit L-Type Coil Car
Floor Standing / Self Contained Hydraulics

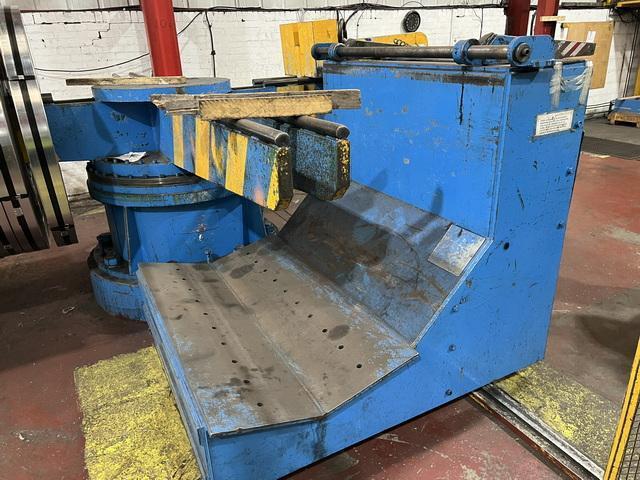

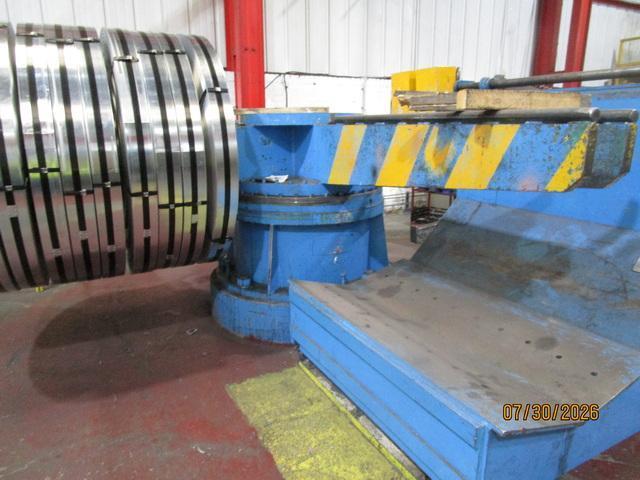

Exit 4 Arm Turnstile
Shimless Tooling
Control Techniques Digital Drives Mentor ll
Compete with Hydraulics, Electrics & Controls
