1830mm x 4.0mm x 25 Ton Athader Loop Slitting Line Year 2022

Brand
ATHADER

Model
Not Specified

Type
Slitters & Slitting Lines

Stock #
605651A

Condition
Like New

Year
2022

Request a Quote
Have one to sell?
Width 72 inches
Thickness .157 inches
Coil Weight 50000 pounds
Arbor Size .354 inches

Equipped With

Year 2022

Double Loop Looper Capability
Programmable Arbor Tooling Positioning

Thickness Range: .3mm - 4.0mm
Coil Width: 600mm - 1830mm
Line Speed: 150MPM & 300 MPM
Entry Coil ID: 508mm - 610mm
Exit Coil ID: 508mm Diameter Drum (Pads for 610mm)
Coil OD: 2000mm
Cutting Capacity: 22 Cuts @ .3mm
Slitting Accuracy: 0.1mm
Voltage: 415V & 50/60 Cycle

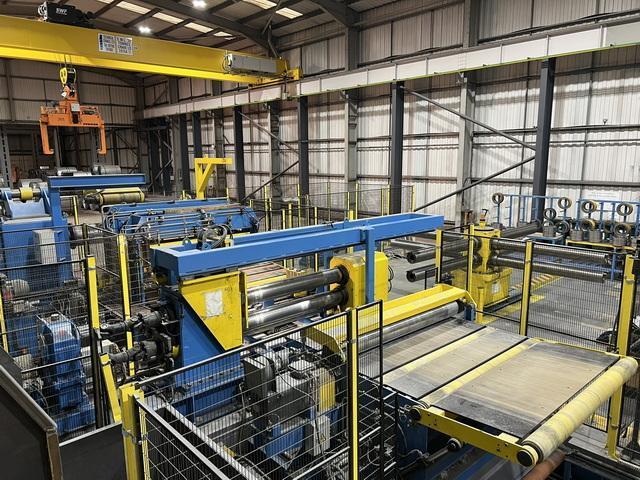

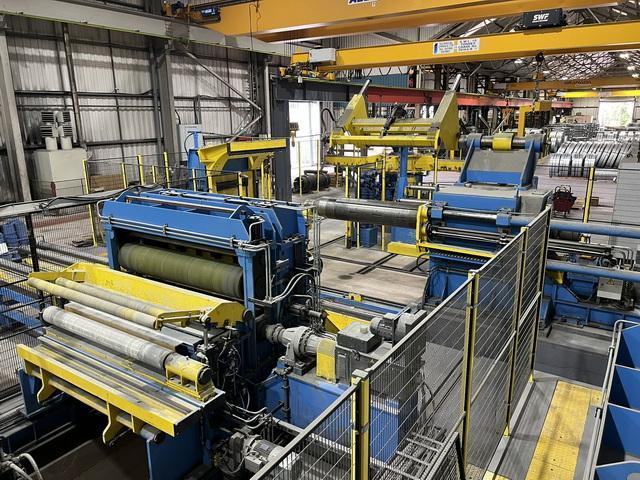

Complete Line:

2 Coil Storage Ramps
Entry Coil Car

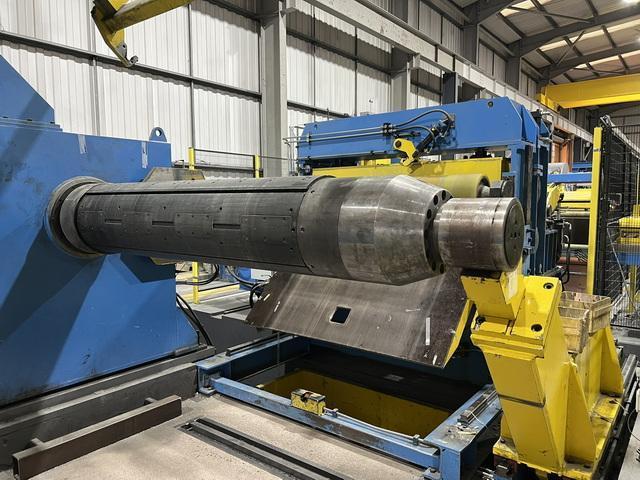

Mandrel Uncoiler with Out Board Bearing Support
Edge Control Unit

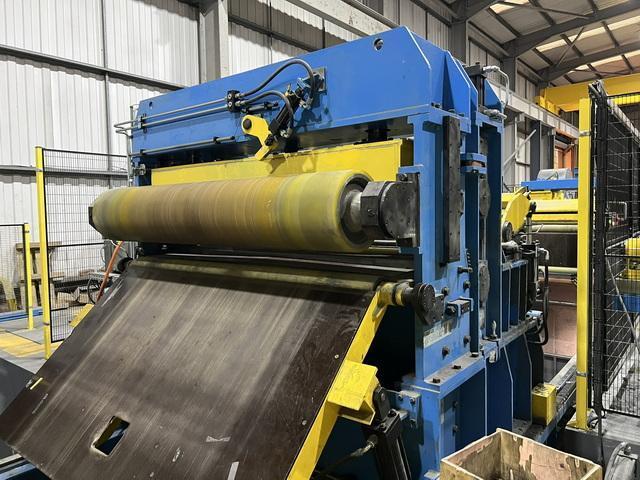

Pinch Rolls
3 Roll Coil Breaker
Crop Shear

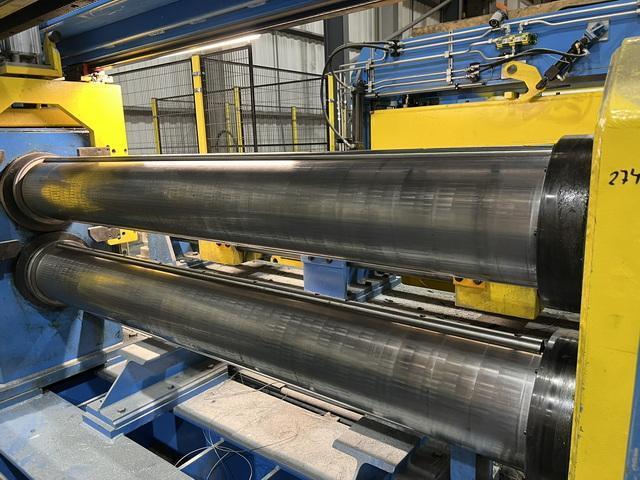

Slitter Head with 230mm Diameter Arbors
134 KW DC Drive

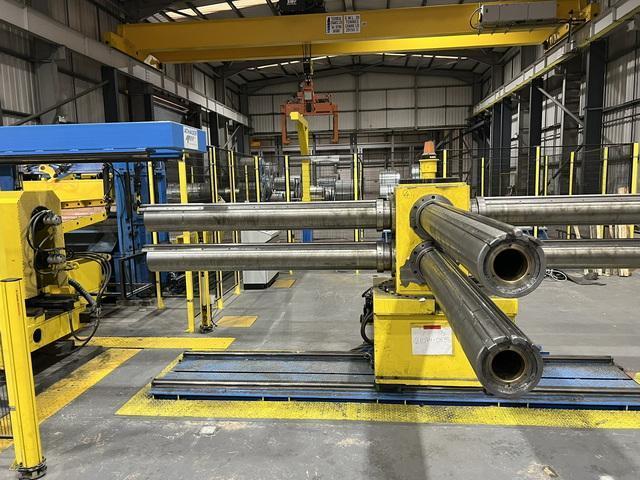

4 Arm Tooling Capstan

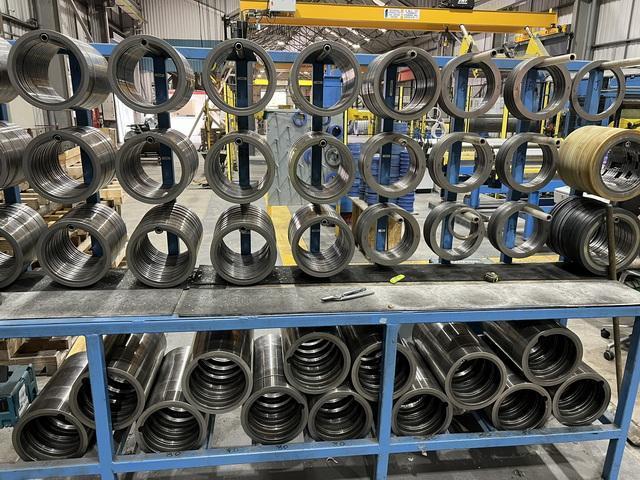

Shimless Tooling
Scrap Baller
Pinch Rolls
Looper for Double Loop Operation
Drag Board Tension Stand with Injector Style Tension Rolls (Spare Rolls)

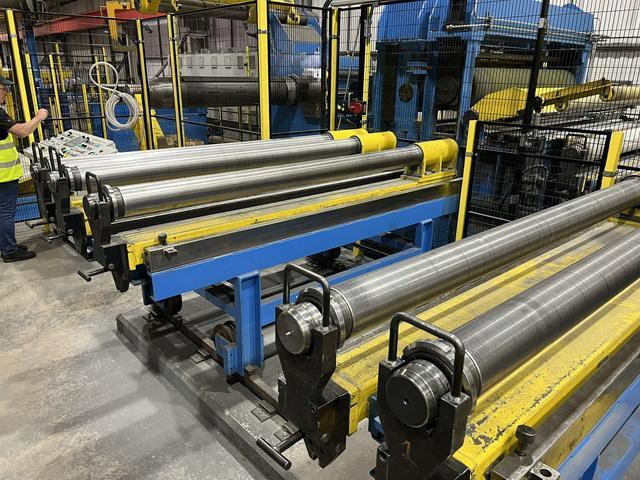

Injector Style Tooling Separator Shafts (Spare Shafts)
Crop Shear
Pass Line Roll
Feed Up Table

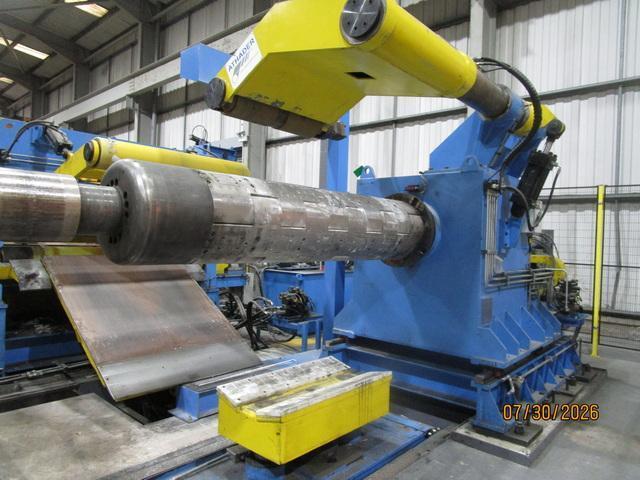

Recoiler Full with 257KW DC Motor
Outboard Bearing Support
2 Speed Gear Box
Exit L-Type Coil Car with Rotating Carousel Sub Base
Exit 4 Arm Turnstile
Shimless Tooling
Control Techniques Digital Drives

Complete Line In Excellent Condition
