| Width | 74 inches |
| Thickness | .500 inches |
| Coil Weight | 80000 pounds |
| Arbor Size | 10.5 inches |
General Specifications:
Pro-Eco Slitting Line Pro-Eco Entry Floor Type Coil Car
• Mast/End Feed Type
• Floor Mounted
• Self-Contained Hydraulics
• Hydraulic Lift and Traverse
• Powered Positioning Rolls

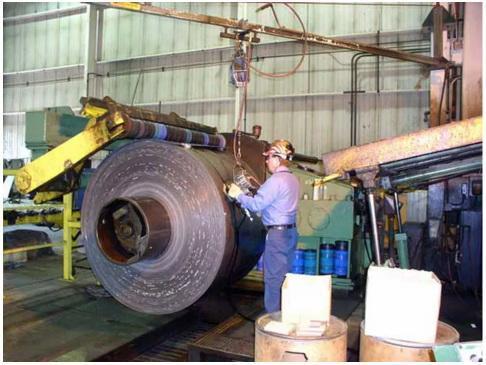

Double-End Uncoiler
• High Tension Air Brake System on Both Sides
• Hydraulic Sliding Base with Edge Control
• Feed-Up Drive with Clutch
Pro-Eco 72” Heavy-Duty Peeler System
• Power Driven Hold Down Roll
• Hydraulic In/Out, Up/Down Travel
Pro-Eco 74” Roll Face Flattener Rolls
• Powered Entry Pinch Rolls
• Roller Bearings Throughout
• Alloy Hardened and Ground Rolls
• Adjustable Rolls to Set Flatness
• Motor Clutch System, Forward/Reverse
Butech Entry Crop Shear
Long Rotary Type Heavy-Duty Edge Guides
• Power Adjustment
• Individual Width Adjustment
• Large Multiple Roller Type on Each Individual Housing

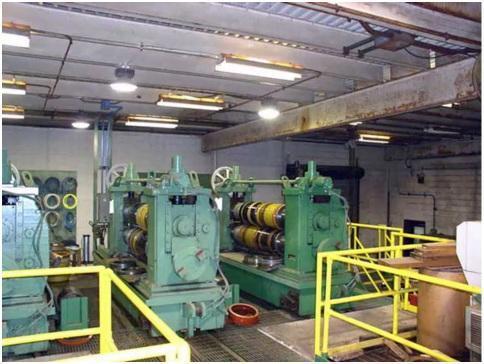

Two (2) Pro-Eco Ejector Slitter Heads on Common Track Base
• (2)-10.5” Diameter Precision Arbors x 74” Effective Strip Width
• Set-Up Base for (2) Heads
• Powered Top Arbor Adjustment
• Powered Outboard Retraction
• Speeds from 0 to 150 FPM @ Full Slitting Capacity, 0 to 500 FPM Top
Tooling
• Full Complement of Knives, Spacers, & Rubber Strippers for 9.5” Arbors
• Full Complement of Tooling for (2) Separator Shafts
Butech Exit Crop Shear
Pro-Eco Recoiler Feed System
• For Guiding Slit Strips into Recoiler Gripper Slot
24” ID Recoiler
• Hydraulic Pushoff
• Large Gripper Slot for .500” Thick Material
• Powered Snubber System
• 200 HP Motor with New Drive and Controls
• 74” Hydraulic Overarm Separator and Snubber with (2) Shafts
Exit Coil Car
• Self-Contained Hydraulics
• Hydraulic Lift and Traverse
(2) Pump & Tank Units w/Automatic Float Control
• (1) at Uncoiler Area & (1) at Recoiler Area
• Necessary Solenoid Valves and Controls at Control Console
Addtional Specifications Include:
- Material: Stainless, Aluminum, High Strength Steel
- Maximum Shear Strength: 65,000 PSI
- Maximum Yield Strength: 80,000 PSI
- Maximum Width: 72”
- Maximum Thickness: .500”
- Minimum Thickness: .017”
- Maximum Coil Weight at Uncoiler and Recoiler: 80,000#
- Entry Coil ID at Uncoiler: 20” to 24”
- Exit Coil ID at Recoiler: 24”
- Entry Coil OD: 36” - 72”
- Exit Coil OD: 36” - 72”
- Line Speed (Full Torque): 150 FPM
- Maximum Line Speed: 500 FPM
- Maximum Slitting Capacity w/60,000 PSI Tensile: 5 Cuts of .500”
- 11 Cuts of .135”
- 21 Cuts of .060”
